Recessed Lever Operated Drawlatch

Product image 1
1 / 5

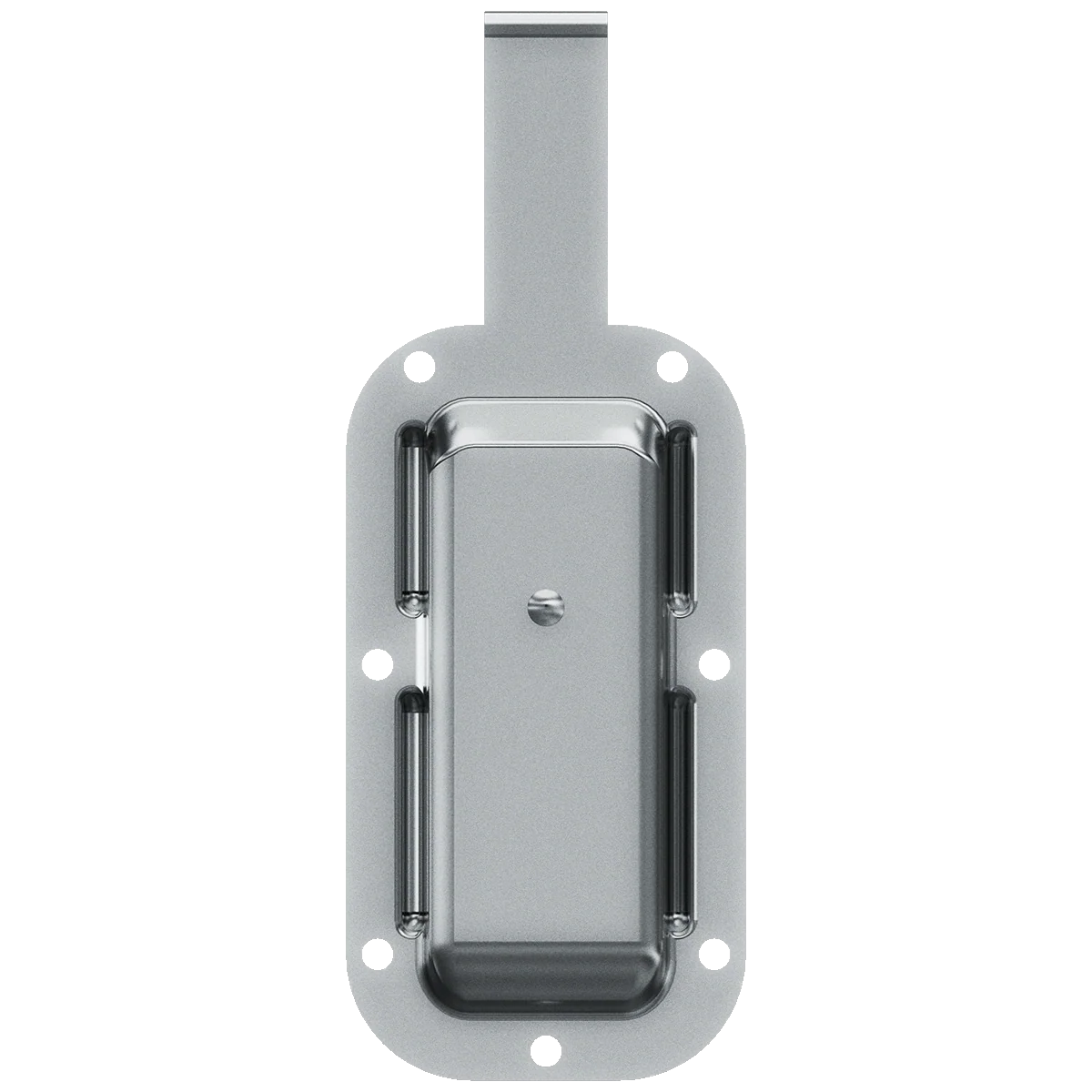

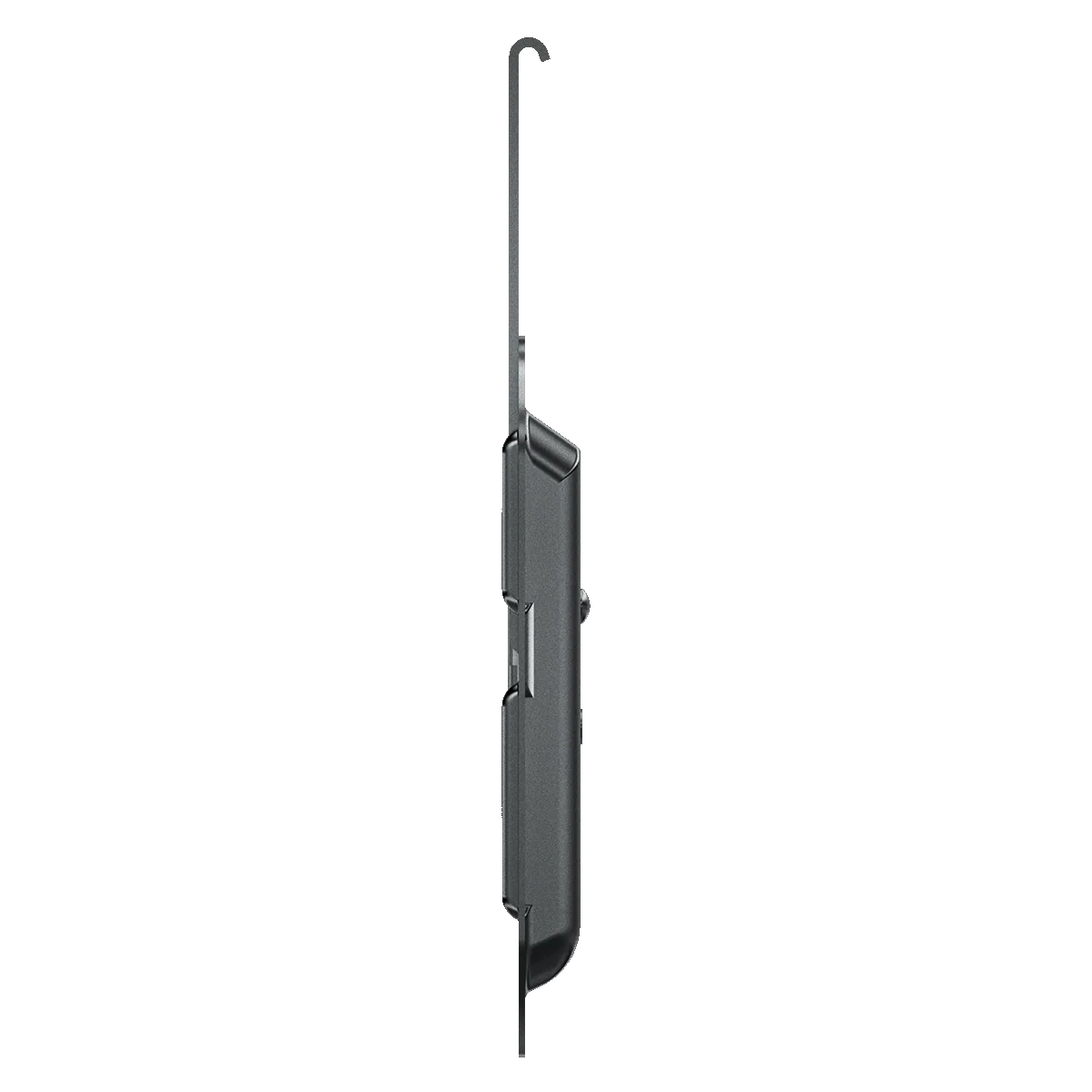

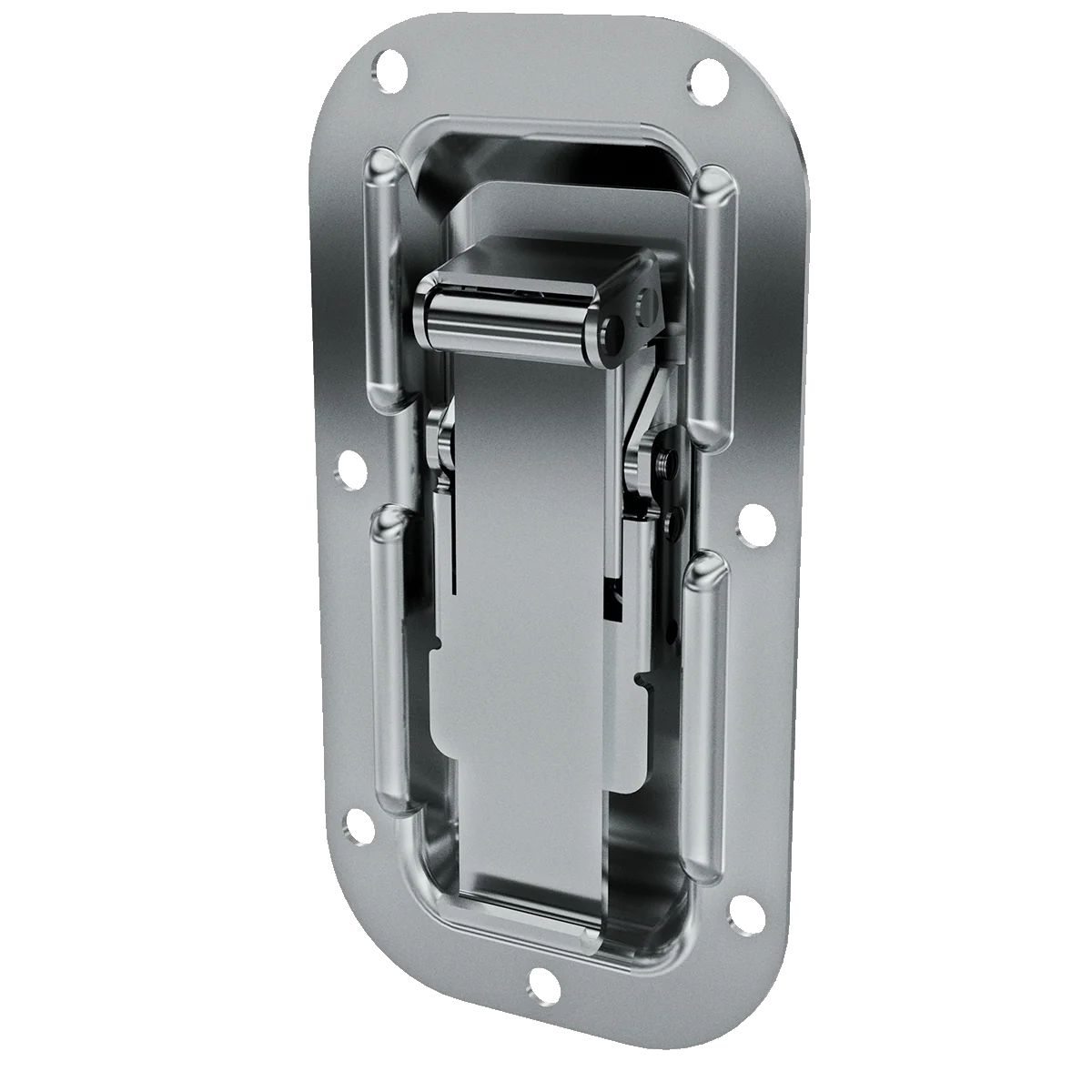

Recessed Lever Operated Drawlatch

  • Spring compression latch provides heavy clamping pressure
  • Narrow dish allows for mounting in restricted space
  • Uses strike 501-515800, sold separately
  • MFG Item No: 501-505800
  • Material: Steel
  • Color/Finish: Bright Zinc Plate /
  • Size: Small
  • Width: 2.40in [61.0mm]
  • Height: 4.49in [114.0mm]
  • Depth: 0.50in [12.7mm]
  • Weight: 0.29lb [0.1 kg]
  • Country of Origin: China
  • Package Quantity: 1
    • PDFPDF Drawing
    DXFDXF File
    URL3D CAD Link
    $14.45
    Recessed Lever Operated Drawlatch—
    $14.45

    Product Information

    Shipping & Returns

    Description

    • Spring compression latch provides heavy clamping pressure
    • Narrow dish allows for mounting in restricted space
    • Uses strike 501-515800, sold separately
  • MFG Item No: 501-505800
  • Material: Steel
  • Color/Finish: Bright Zinc Plate /
  • Size: Small
  • Width: 2.40in [61.0mm]
  • Height: 4.49in [114.0mm]
  • Depth: 0.50in [12.7mm]
  • Weight: 0.29lb [0.1 kg]
  • Country of Origin: China
  • Package Quantity: 1
    • PDFPDF Drawing
    DXFDXF File
    URL3D CAD Link
