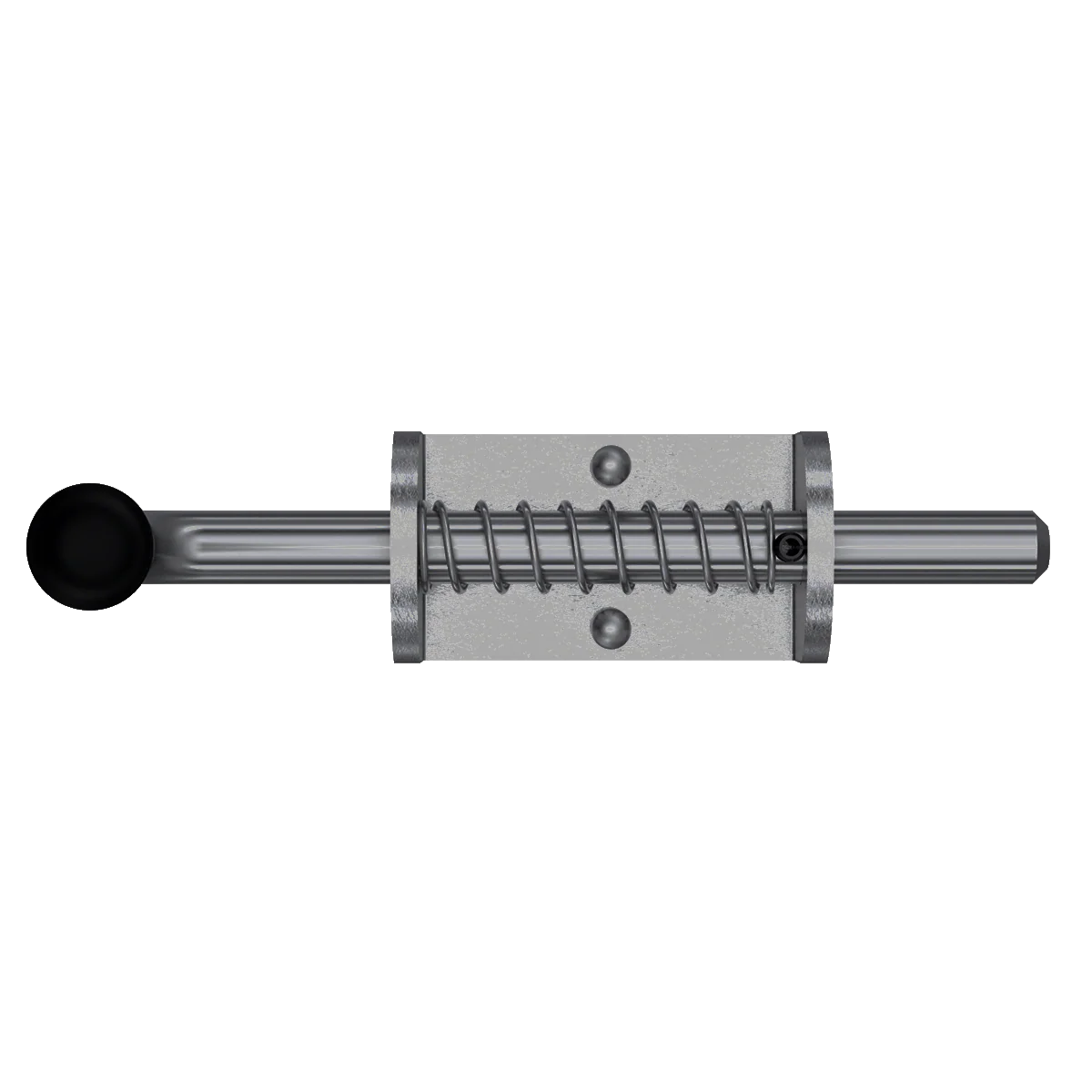

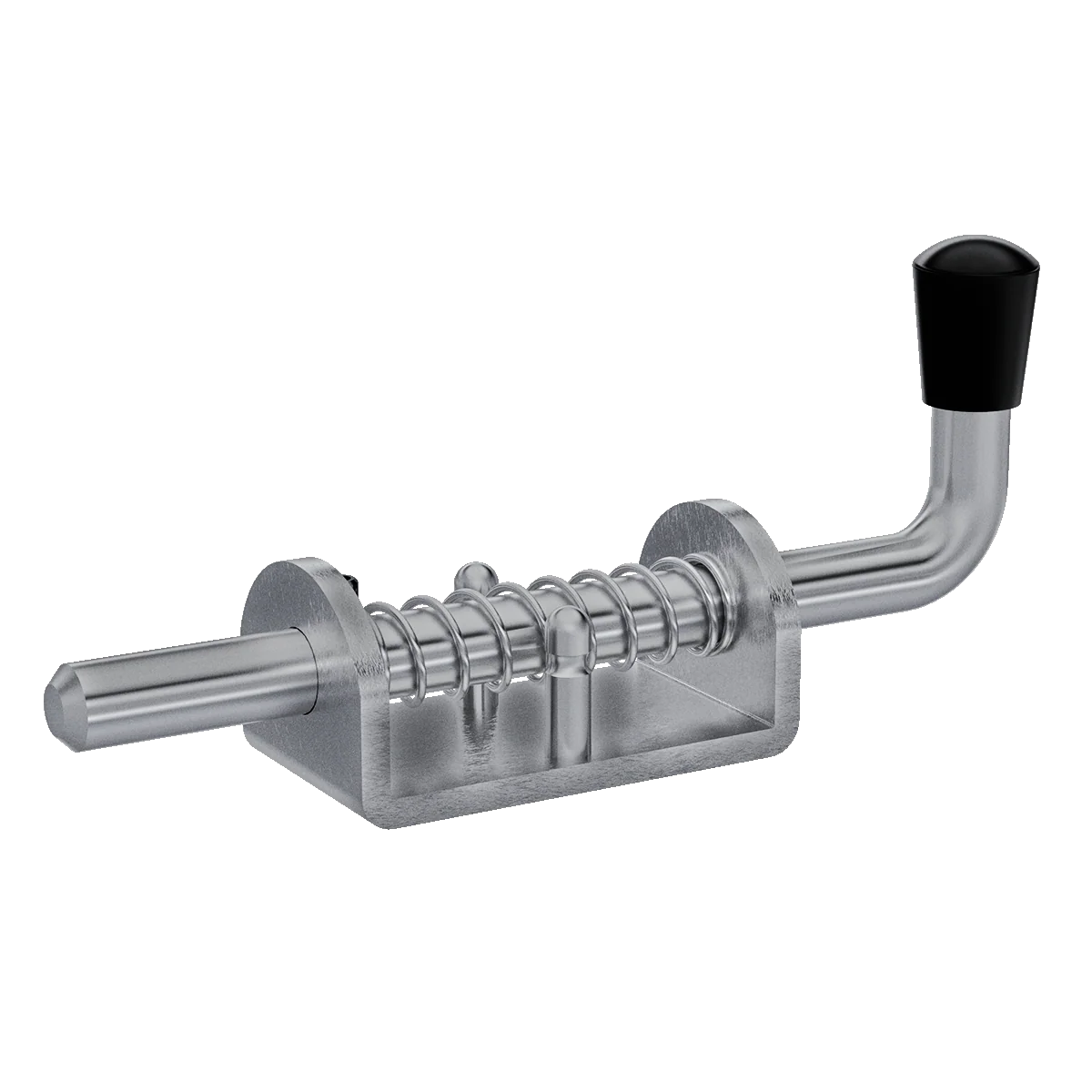

Spring-loaded bolt secures doors, gates, and access panels, rotate handle to extend or retract the bolt and hold position for quick latch and release.
Mounts to flat surfaces on enclosures, cases, and light-duty gates, use as a hold-closed latch where simple mechanical security and repeatable alignment are needed. Intended for welding applications.
Rotates 180 degrees and locks in the open position, helps prevent accidental re-engagement during loading, cleaning, or service tasks.
Aluminum mounting plate with stainless steel bolt and hardware, plain finish with black handle grip, built for corrosion resistance in general industrial environments.
Medium size, overall length 6-1/2-inch [165.1mm], height 2-7/8-inch [72.6mm], depth 1-9/16-inch [40.1mm], includes 1 piece packaged in a bag.

MFG Item No: 556-65150806

Material: Aluminum / Stainless Steel

Color/Finish: Plain / Black

Size: Medium

Width: 6.50in [165.1mm]

Height: 2.86in [72.6mm]

Depth: 1.58in [40.1mm]

Weight: 1.00lb [0.5 kg]

Country of Origin: China

Package Quantity: 1

Package Type: Bag
