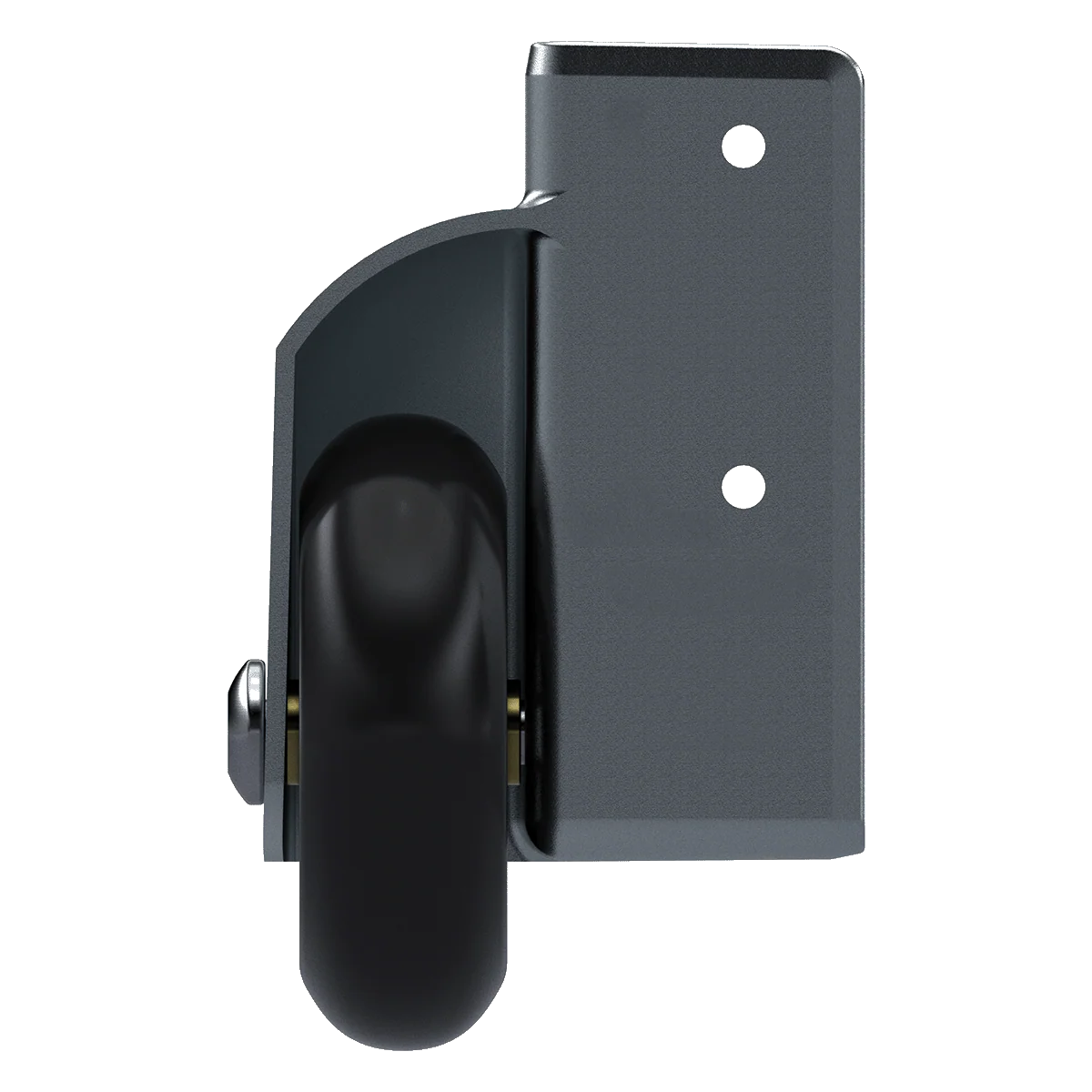

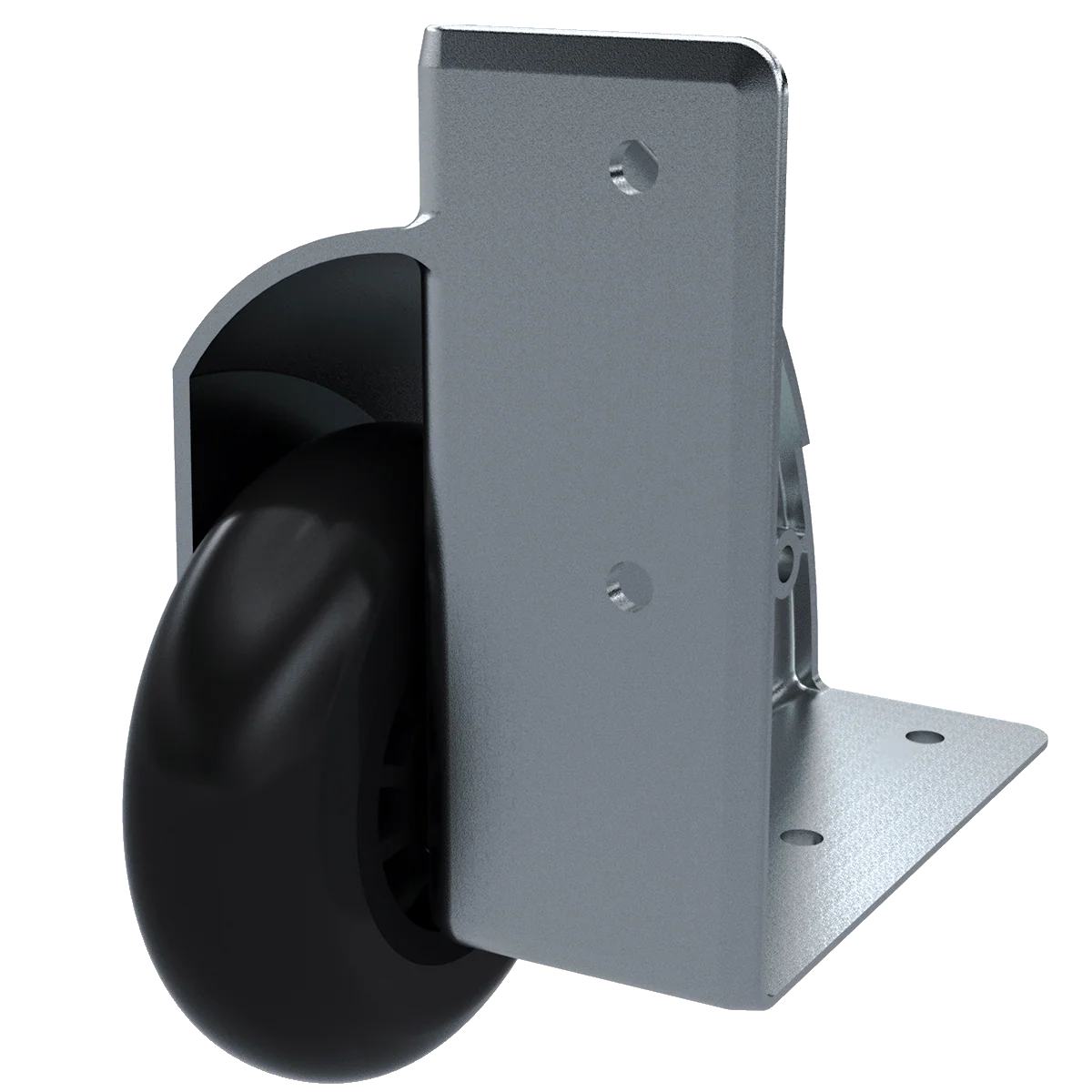

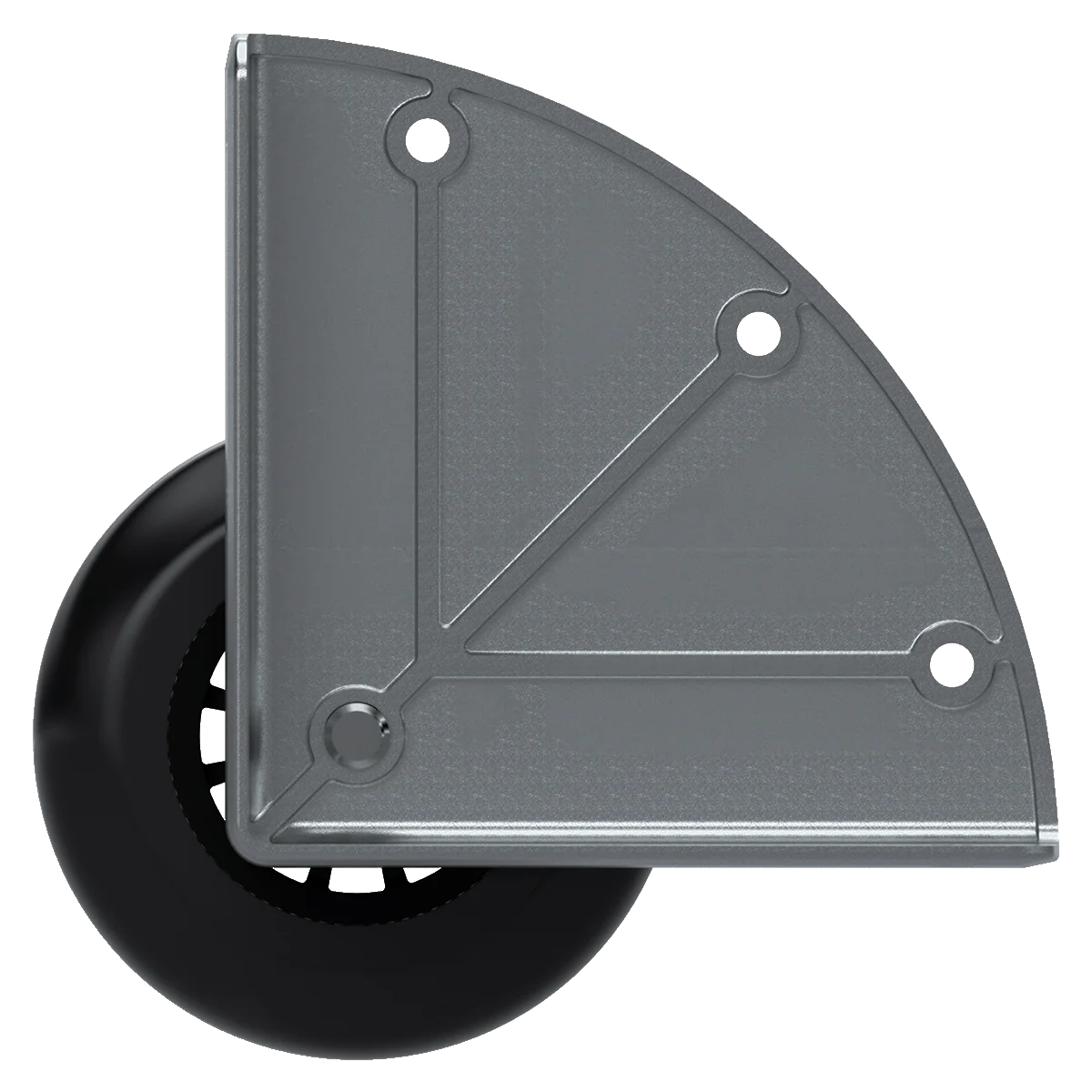

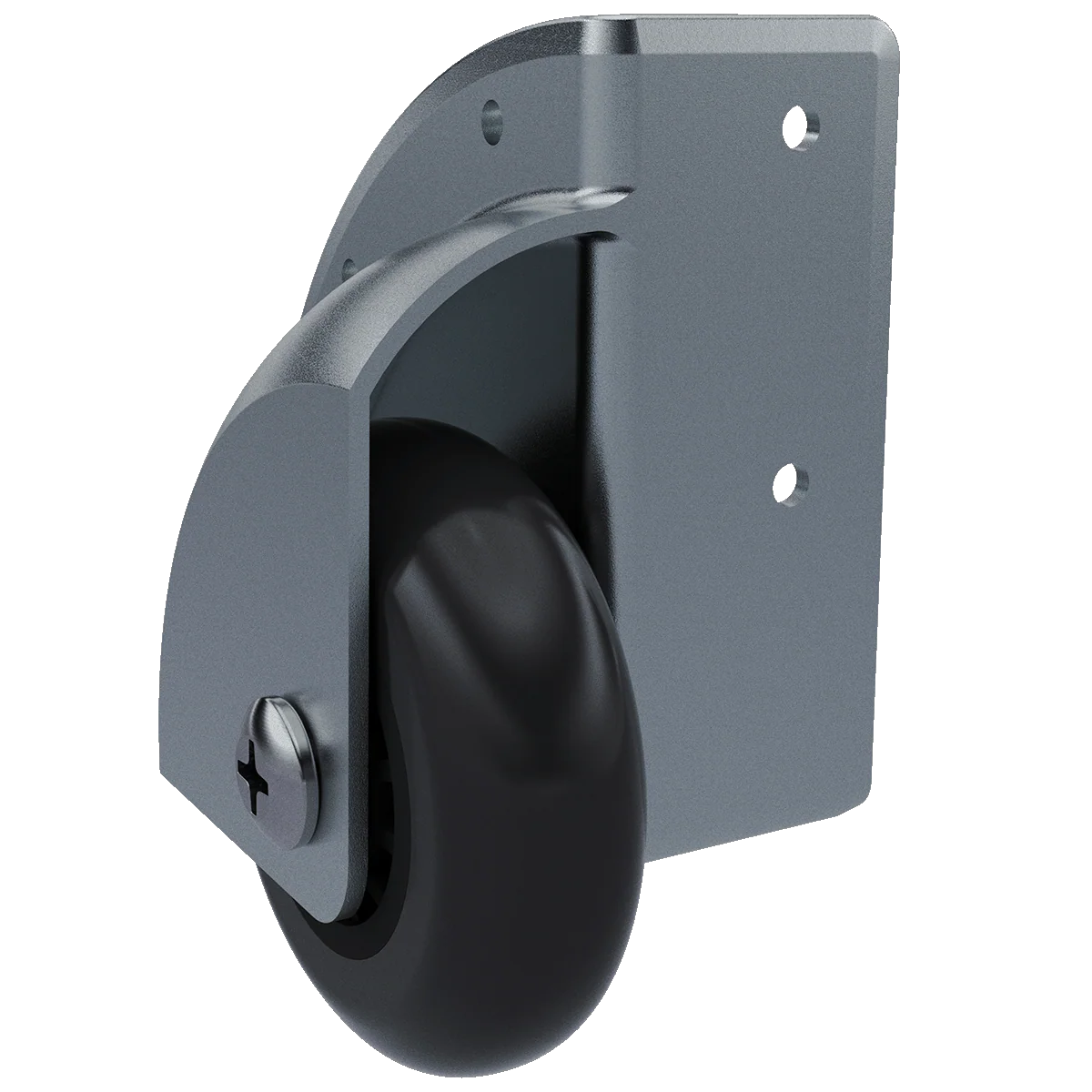

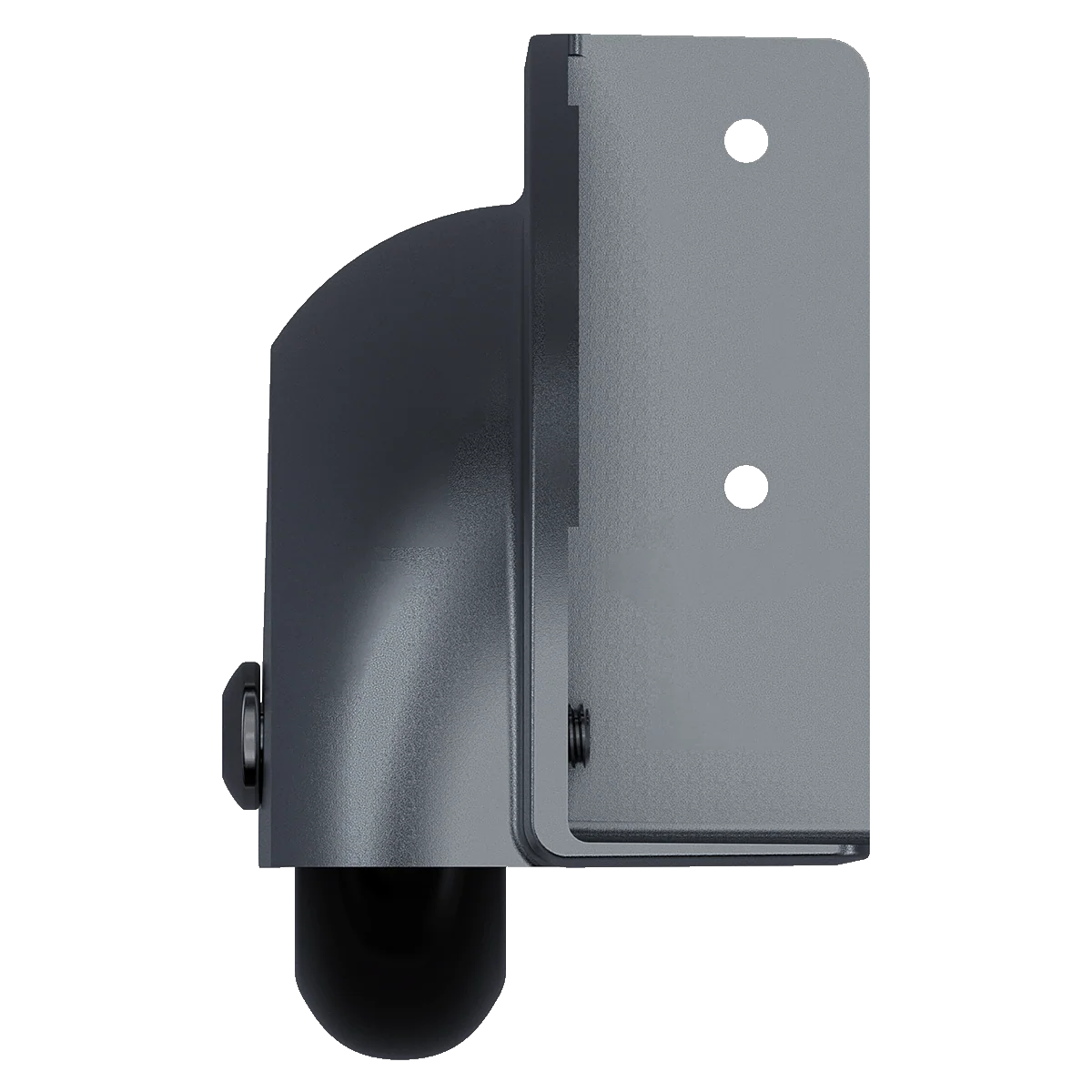

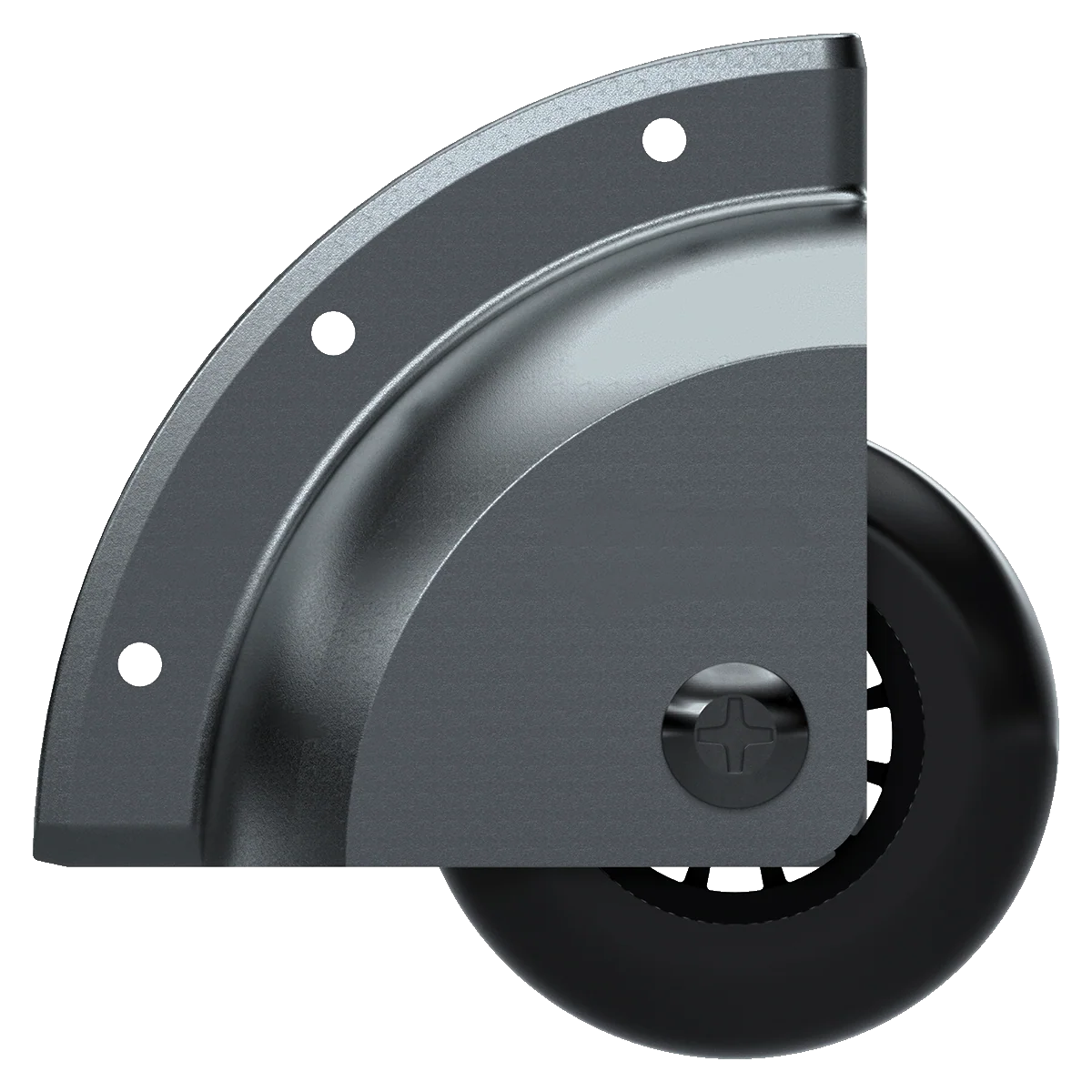

3-inch Silver Corner Caster - External Mount

Product image 1
1 / 6

3-inch Silver Corner Caster - External Mount

  • Exterior mount, no cuts necessary
  • Heavy duty corner integrated with a 3" rigid caster
  • Rugged roller blade style wheel with ball bearing. Corner is made from die cast zinc
  • Only 7 mounting holes
  • Load capacity: 25kg/55lbs
  • MFG Item No: 511-2294800
  • Material: Die Cast Zinc / Rubber
  • Color/Finish: Silver Powdercoat /
  • Width: 2.80in [71.1mm]
  • Height: 4.68in [118.9mm]
  • Depth: 4.68in [118.9mm]
  • Weight: 1.28lb [0.6 kg]
  • Load Capacity: 55.00 lb [24.9 kg]
  • Caster Wheel Diameter: 3.0 x 1.0in
  • Country of Origin: China
  • Package Quantity: 1
    • PDFPDF Drawing
    DXFDXF File
    URL3D CAD Link
    $17.76
    3-inch Silver Corner Caster - External Mount—
    $17.76

    Product Information

    Shipping & Returns

    Description

    • Exterior mount, no cuts necessary
    • Heavy duty corner integrated with a 3" rigid caster
    • Rugged roller blade style wheel with ball bearing. Corner is made from die cast zinc
    • Only 7 mounting holes
    • Load capacity: 25kg/55lbs
  • MFG Item No: 511-2294800
  • Material: Die Cast Zinc / Rubber
  • Color/Finish: Silver Powdercoat /
  • Width: 2.80in [71.1mm]
  • Height: 4.68in [118.9mm]
  • Depth: 4.68in [118.9mm]
  • Weight: 1.28lb [0.6 kg]
  • Load Capacity: 55.00 lb [24.9 kg]
  • Caster Wheel Diameter: 3.0 x 1.0in
  • Country of Origin: China
  • Package Quantity: 1
    • PDFPDF Drawing
    DXFDXF File
    URL3D CAD Link
