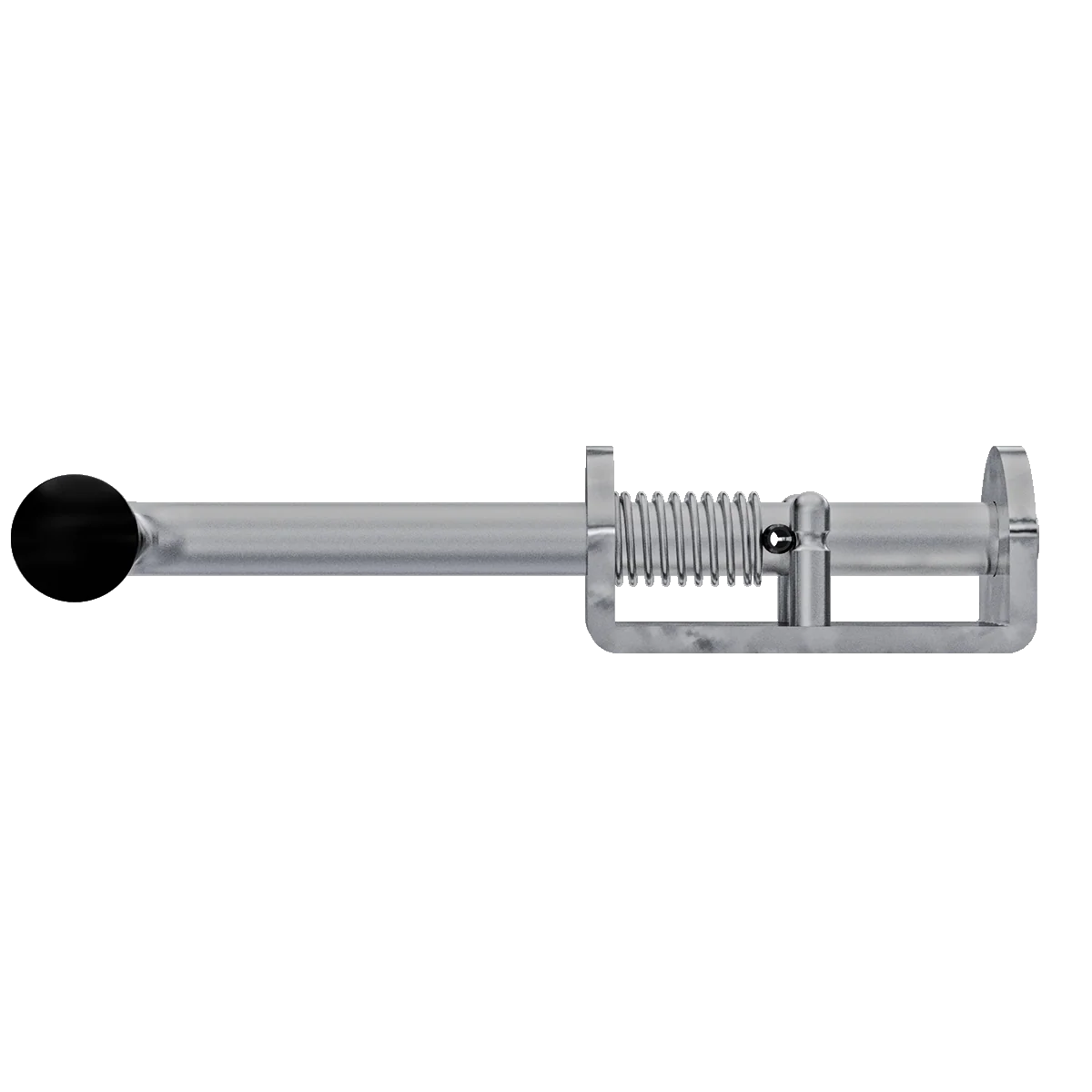

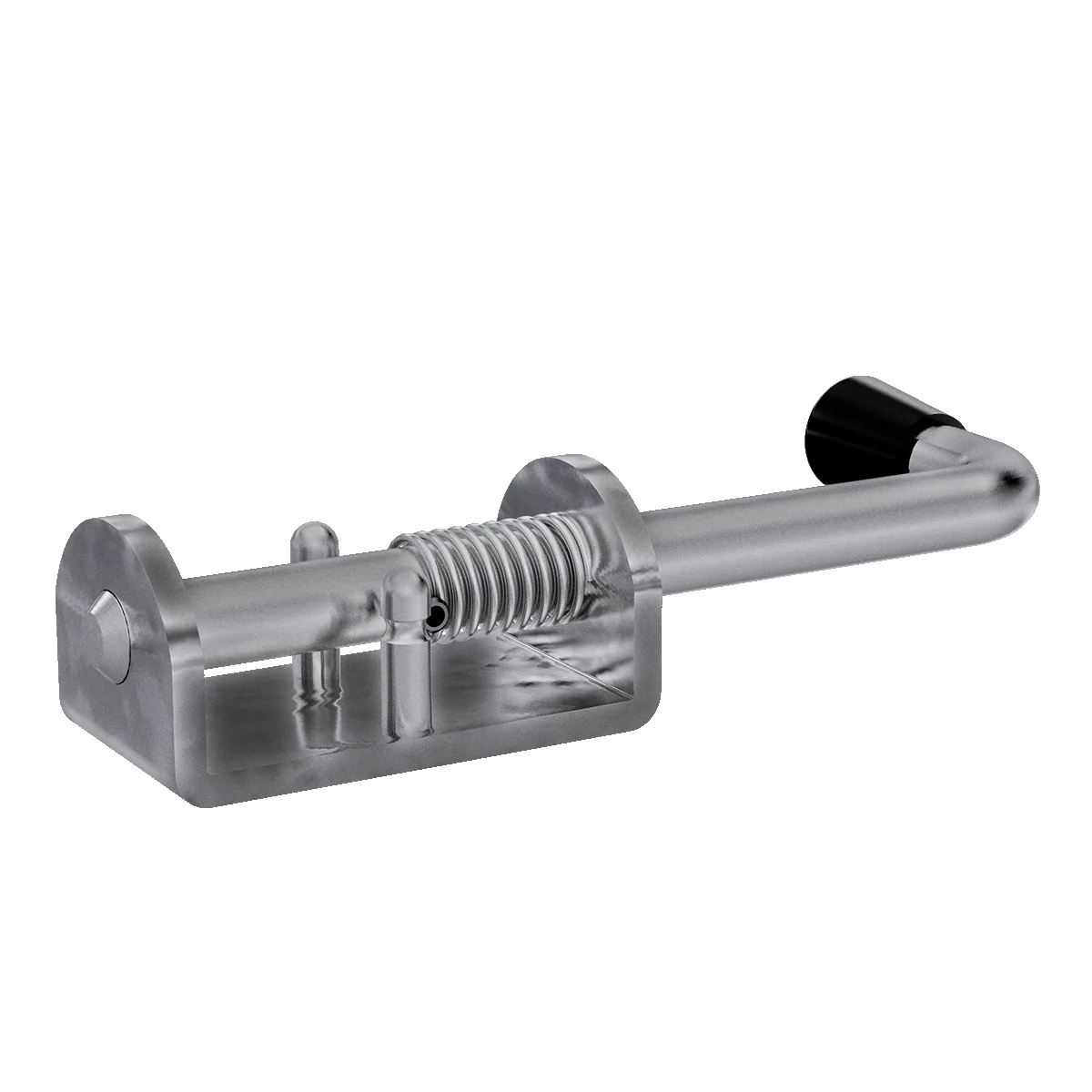

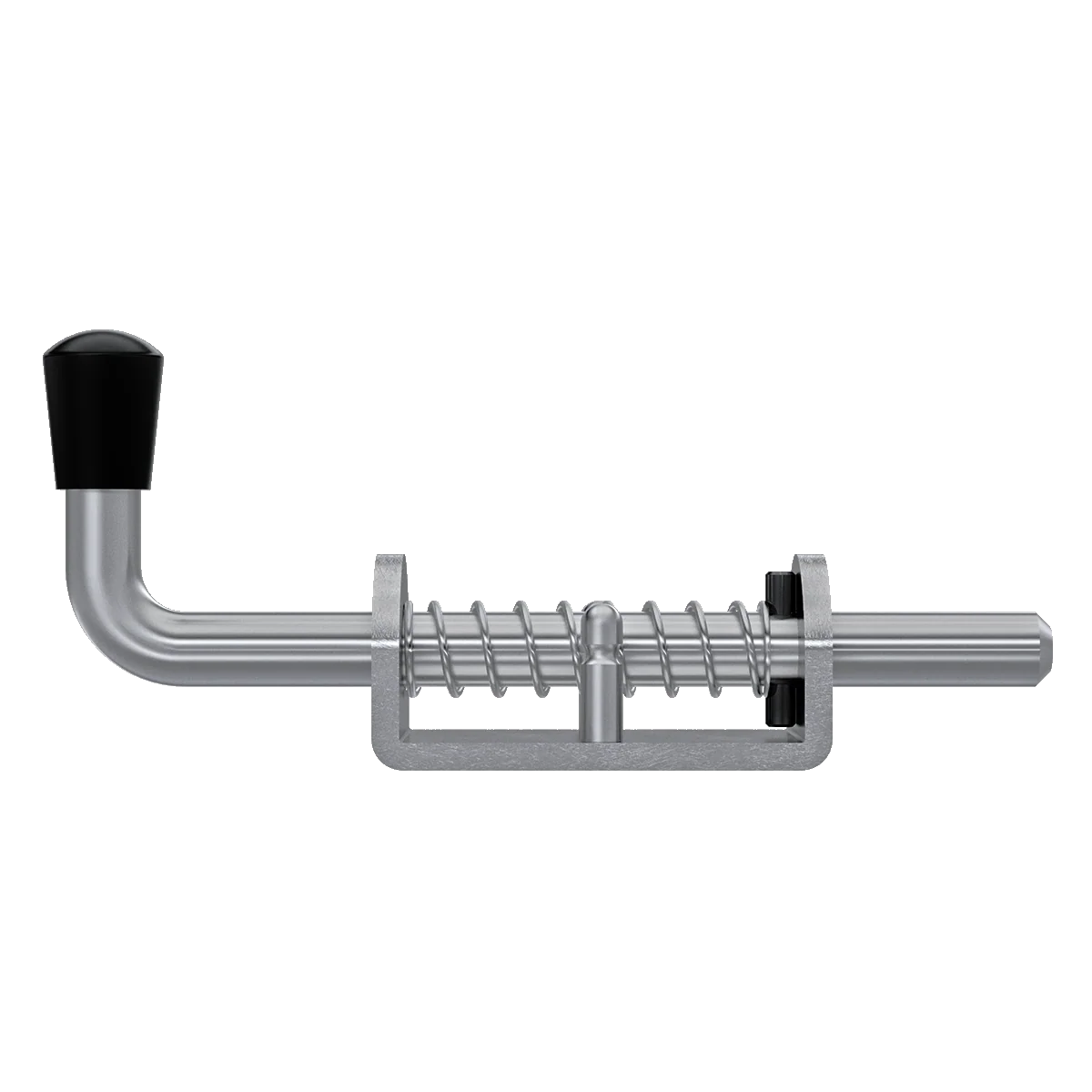

6.5-inch Spring Bolt with Aluminum Mounting Plate
- Spring-loaded bolt secures doors, gates, and access panels, rotate handle to extend or retract the bolt and hold position for quick latch and release.
- Mounts to flat surfaces on enclosures, cases, and light-duty gates, use as a hold-closed latch where simple mechanical security and repeatable alignment are needed. Intended for welding applications.
- Rotates 180 degrees and locks in the open position, helps prevent accidental re-engagement during loading, cleaning, or service tasks.
- Aluminum mounting plate with stainless steel bolt and hardware, plain finish with black handle grip, built for corrosion resistance in general industrial environments.
- Medium size, overall length 6-1/2-inch [165.1mm], height 2-7/8-inch [72.6mm], depth 1-9/16-inch [40.1mm], includes 1 piece packaged in a bag.
