Self-Clinching Stud, Flush Head, Steel, Zinc, 8-32 x 0.750, 100 Pack

Product image 1
1 / 2

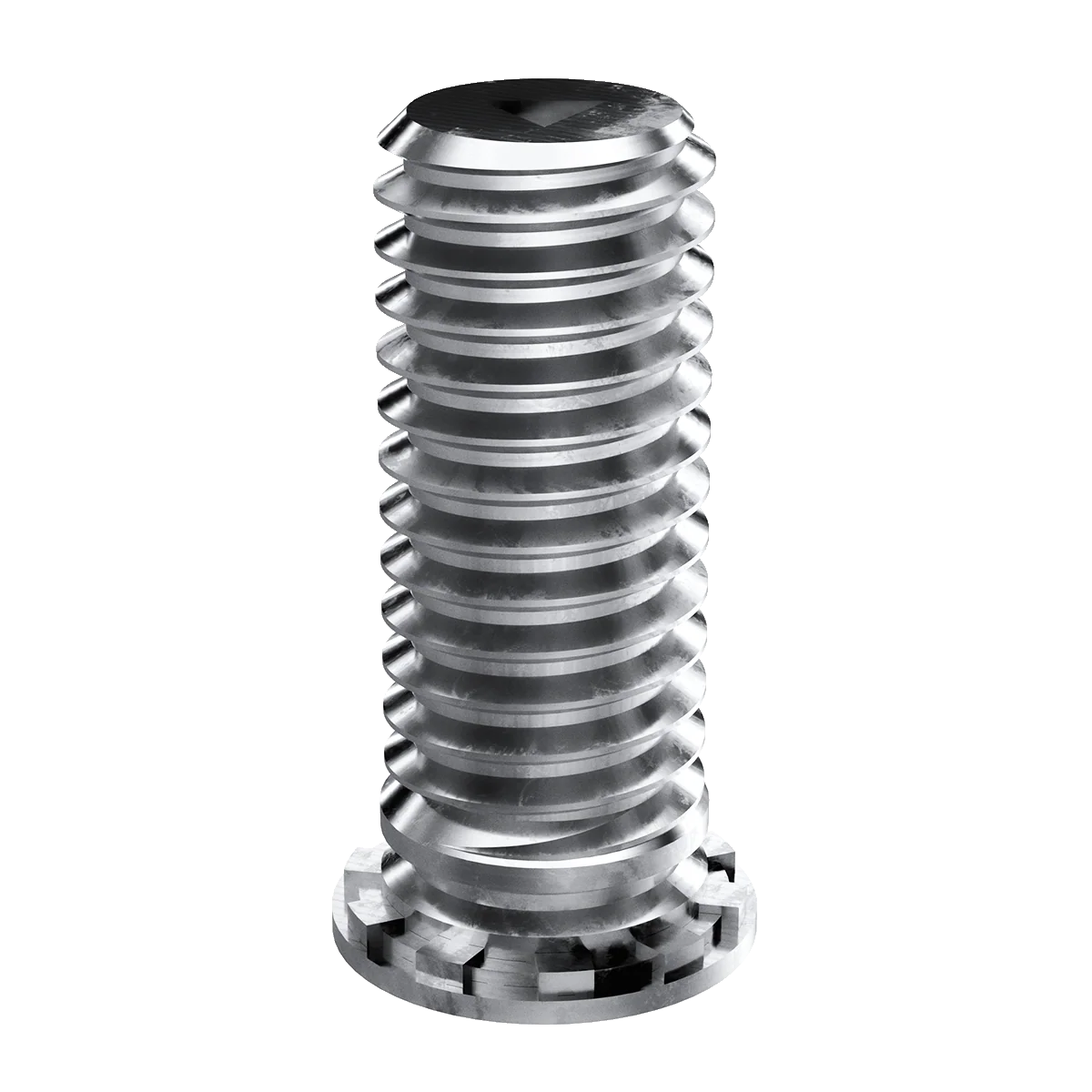

Self-Clinching Stud, Flush Head, Steel, Zinc, 8-32 x 0.750, 100 Pack

  • #8-32 x 0.75 Self clinching steel threaded stud
  • #8 (0.164) diameter, 32 Threads per inch, UNC thread size
  • External Thread, Class 2A, ANSI B1.1 (6g ANSI/ASME B1.13M)
  • CH studs provide a strong flush-head assembly in material as thin as .040 in. (1.0 mm) with high torque-out and pushout performance.
  • MFG Item No: CH832-12
  • Material: Steel; Heat Treated
  • Color/Finish: Zinc Clear /
  • Size: 832
  • Width: 0.24in [6.0mm]
  • Height: 0.24in [6.0mm]
  • Depth: 0.75in [19.1mm]
  • Weight:
  • Thread: 8-32 UNC x 0.75 in
  • Country of Origin: United States
  • Package Quantity: 100
  • Package Type: PolyBag

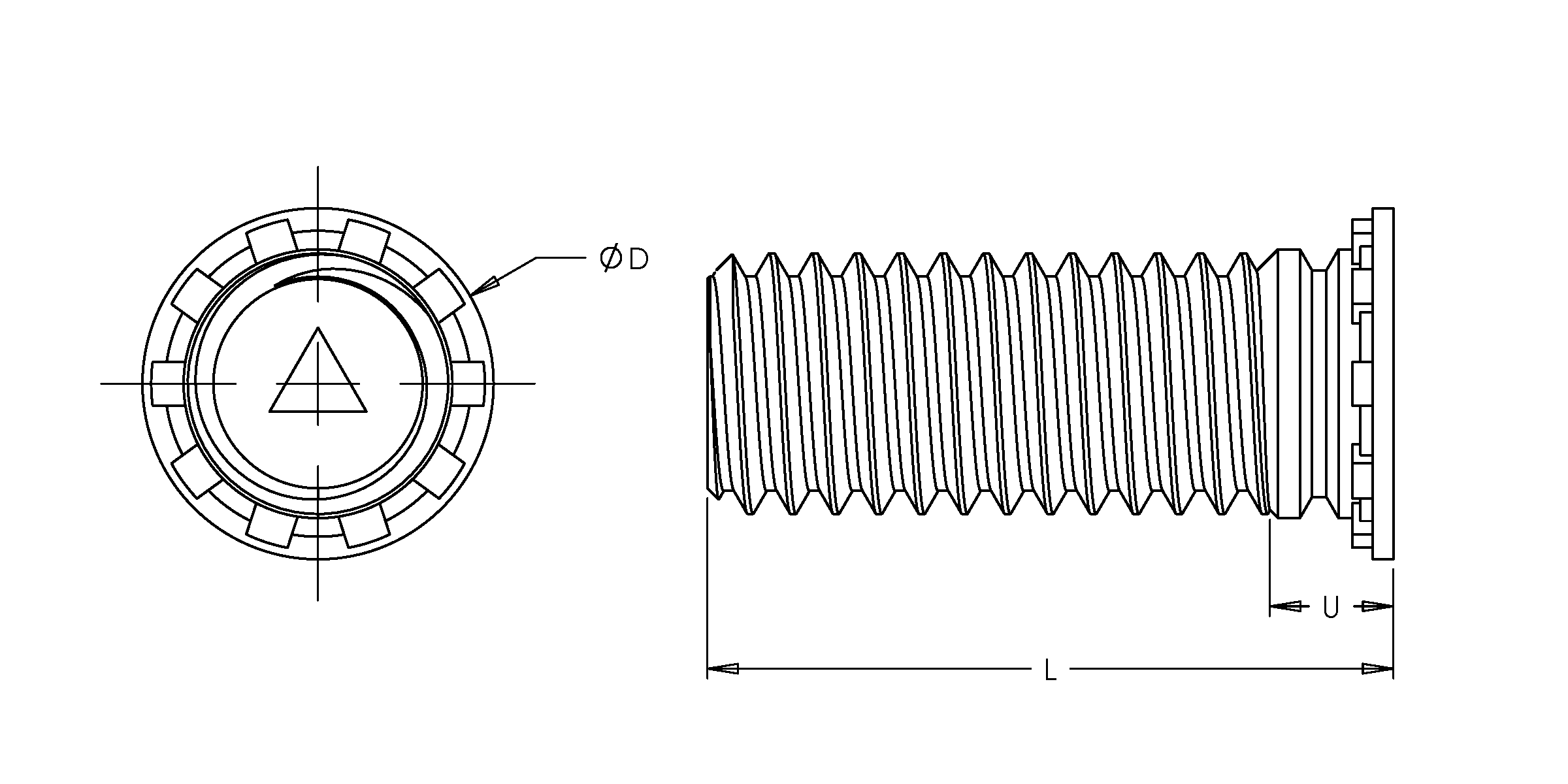

    • PDFPDF Drawing
    PDFData Sheet
    PDFInstallation Instructions
    $25,544.88

    Original: $72,985.37

    -65%
    Self-Clinching Stud, Flush Head, Steel, Zinc, 8-32 x 0.750, 100 Pack—

    $72,985.37

    $25,544.88

    Product Information

    Shipping & Returns

    Description

    • #8-32 x 0.75 Self clinching steel threaded stud
    • #8 (0.164) diameter, 32 Threads per inch, UNC thread size
    • External Thread, Class 2A, ANSI B1.1 (6g ANSI/ASME B1.13M)
    • CH studs provide a strong flush-head assembly in material as thin as .040 in. (1.0 mm) with high torque-out and pushout performance.
  • MFG Item No: CH832-12
  • Material: Steel; Heat Treated
  • Color/Finish: Zinc Clear /
  • Size: 832
  • Width: 0.24in [6.0mm]
  • Height: 0.24in [6.0mm]
  • Depth: 0.75in [19.1mm]
  • Weight:
  • Thread: 8-32 UNC x 0.75 in
  • Country of Origin: United States
  • Package Quantity: 100
  • Package Type: PolyBag
    • PDFPDF Drawing
    PDFData Sheet
    PDFInstallation Instructions
