Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 6-32 x 0.500, 100 Pack

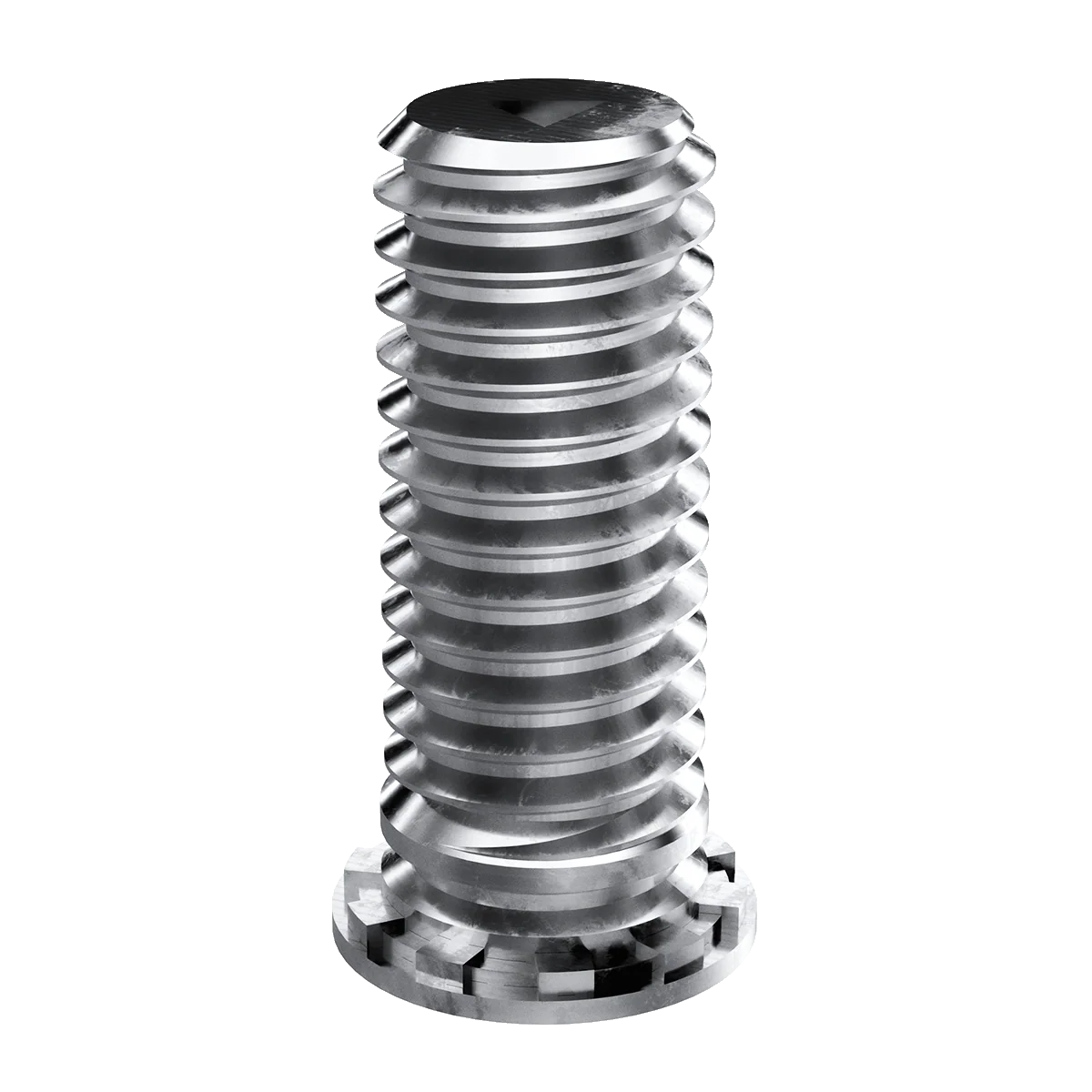

Product image 1
1 / 2

Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 6-32 x 0.500, 100 Pack

  • #6-32 x 0.5 Self clinching stainless Steel threaded stud
  • #6 (0.138) diameter, 32 Threads per inch, UNC thread size
  • External Thread, Class 2A, ANSI B1.1 (6g ANSI/ASME B1.13M)
  • CHS studs provide a strong flush-head assembly in material as thin as .040 in. (1.0 mm) with high torque-out and pushout performance.
  • MFG Item No: CHS632-8
  • Material: Stainless Steel; 300 Series
  • Color/Finish: Passivated /
  • Size: 632
  • Width: 0.21in [5.2mm]
  • Height: 0.21in [5.2mm]
  • Depth: 0.50in [12.7mm]
  • Weight:
  • Thread: 6-32 UNC x 0.5 in
  • Country of Origin: United States
  • Package Quantity: 100
  • Package Type: PolyBag

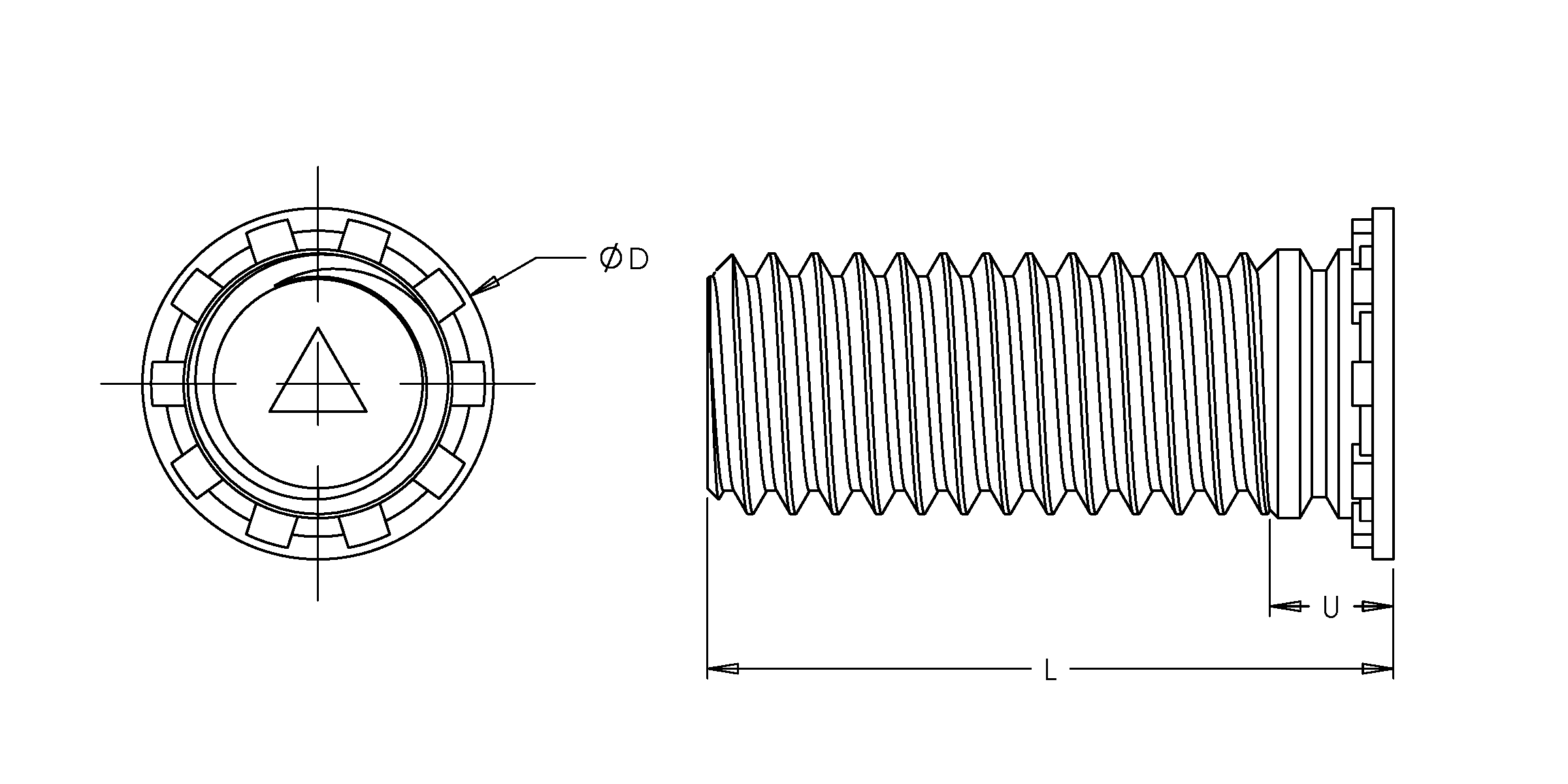

    • PDFPDF Drawing
    PDFData Sheet
    $72,985.37
    Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 6-32 x 0.500, 100 Pack—
    $72,985.37

    Product Information

    Shipping & Returns

    Description

    • #6-32 x 0.5 Self clinching stainless Steel threaded stud
    • #6 (0.138) diameter, 32 Threads per inch, UNC thread size
    • External Thread, Class 2A, ANSI B1.1 (6g ANSI/ASME B1.13M)
    • CHS studs provide a strong flush-head assembly in material as thin as .040 in. (1.0 mm) with high torque-out and pushout performance.
  • MFG Item No: CHS632-8
  • Material: Stainless Steel; 300 Series
  • Color/Finish: Passivated /
  • Size: 632
  • Width: 0.21in [5.2mm]
  • Height: 0.21in [5.2mm]
  • Depth: 0.50in [12.7mm]
  • Weight:
  • Thread: 6-32 UNC x 0.5 in
  • Country of Origin: United States
  • Package Quantity: 100
  • Package Type: PolyBag
    • PDFPDF Drawing
    PDFData Sheet
