Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, M3x0.5 x 8, 100 Pack

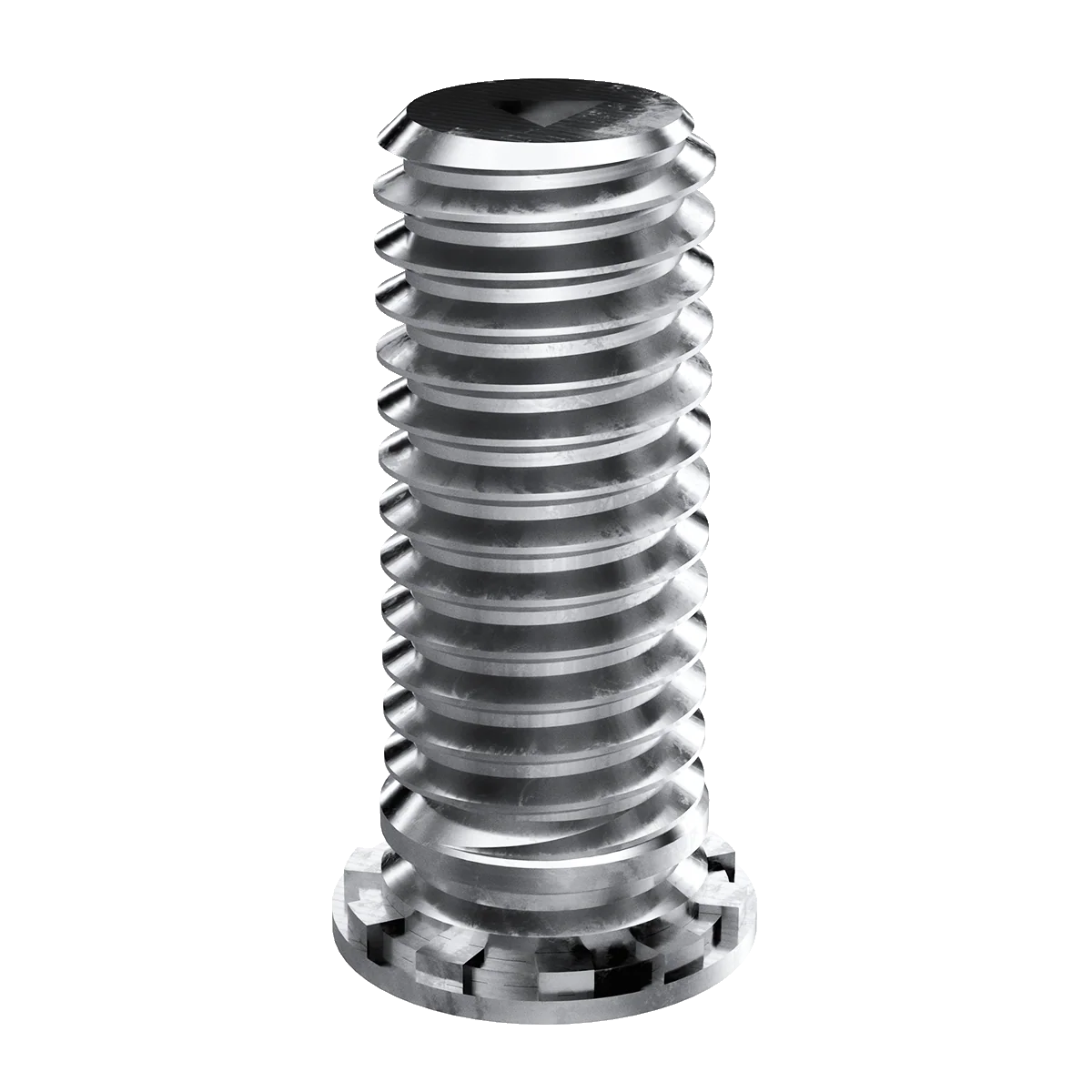

Product image 1
1 / 2

Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, M3x0.5 x 8, 100 Pack

  • M3x0.5 x 8 Self clinching stainless Steel threaded stud
  • 3MM Diameter, 0.5 threads per MM, Metric Thread size
  • External Thread, Class 2A, ANSI B1.1 (6g ANSI/ASME B1.13M)
  • CHS studs provide a strong flush-head assembly in material as thin as .040 in. (1.0 mm) with high torque-out and pushout performance.
  • MFG Item No: CHSM3-8
  • Material: Stainless Steel; 300 Series
  • Color/Finish: Passivated /
  • Size: M3
  • Width: 4.6mm [0.18in]
  • Height: 4.6mm [0.18in]
  • Depth: 8.0mm [0.31in]
  • Weight:
  • Thread: M3x0.5 x 8 mm
  • Country of Origin: United States
  • Package Quantity: 100
  • Package Type: PolyBag

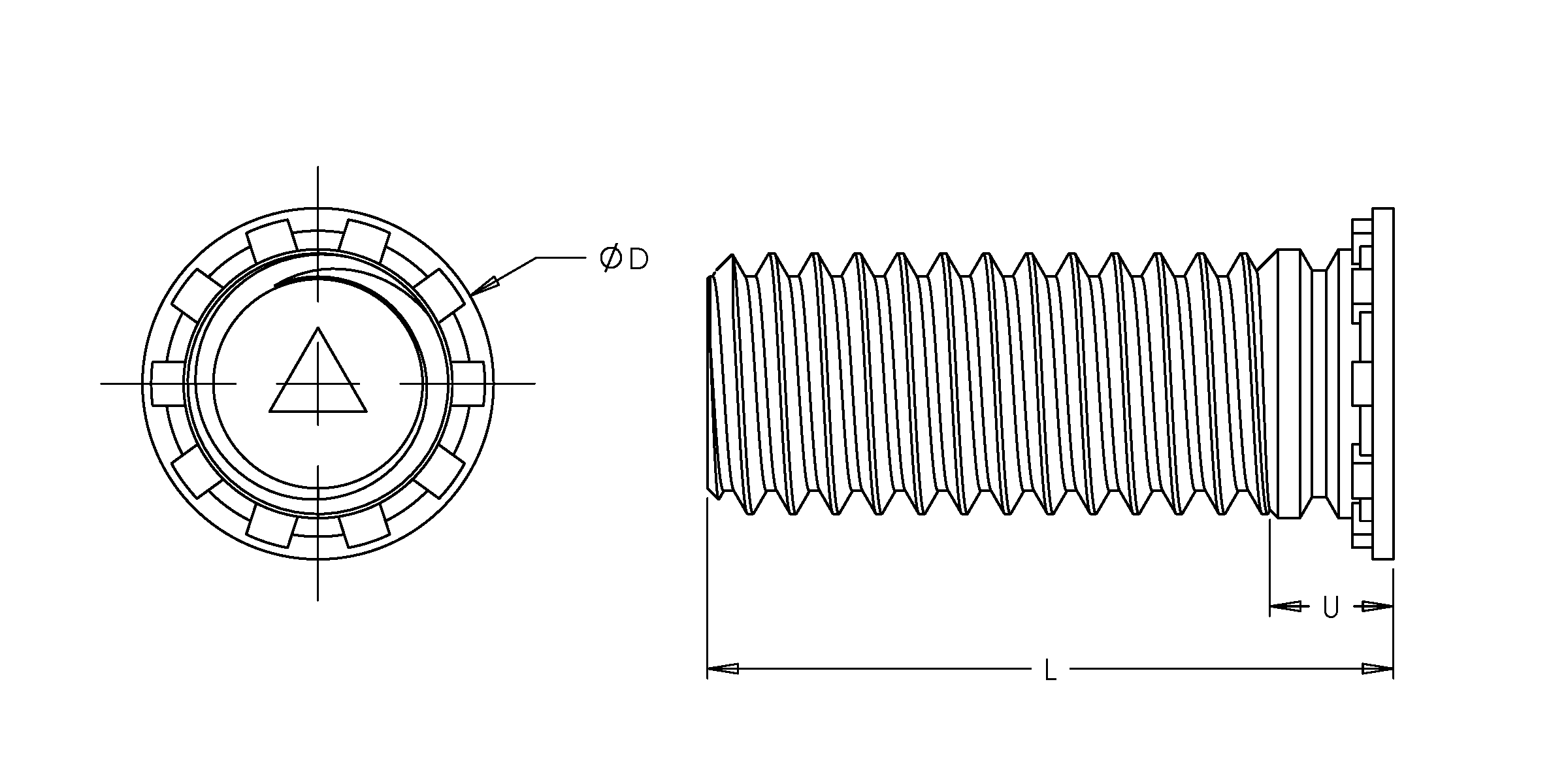

    • PDFPDF Drawing
    PDFData Sheet
    $25,544.88

    Original: $72,985.37

    -65%
    Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, M3x0.5 x 8, 100 Pack—

    $72,985.37

    $25,544.88

    Product Information

    Shipping & Returns

    Description

    • M3x0.5 x 8 Self clinching stainless Steel threaded stud
    • 3MM Diameter, 0.5 threads per MM, Metric Thread size
    • External Thread, Class 2A, ANSI B1.1 (6g ANSI/ASME B1.13M)
    • CHS studs provide a strong flush-head assembly in material as thin as .040 in. (1.0 mm) with high torque-out and pushout performance.
  • MFG Item No: CHSM3-8
  • Material: Stainless Steel; 300 Series
  • Color/Finish: Passivated /
  • Size: M3
  • Width: 4.6mm [0.18in]
  • Height: 4.6mm [0.18in]
  • Depth: 8.0mm [0.31in]
  • Weight:
  • Thread: M3x0.5 x 8 mm
  • Country of Origin: United States
  • Package Quantity: 100
  • Package Type: PolyBag
    • PDFPDF Drawing
    PDFData Sheet
