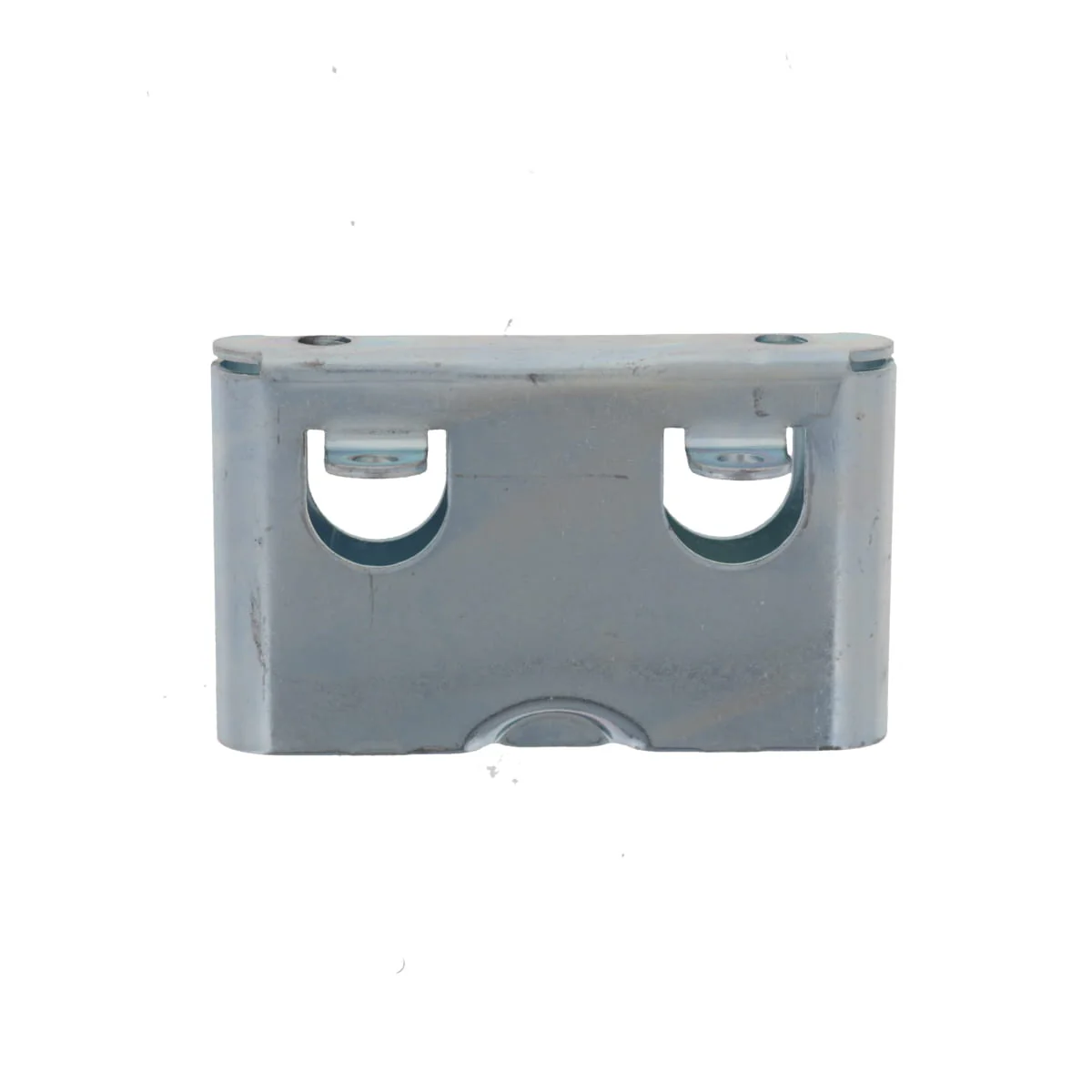

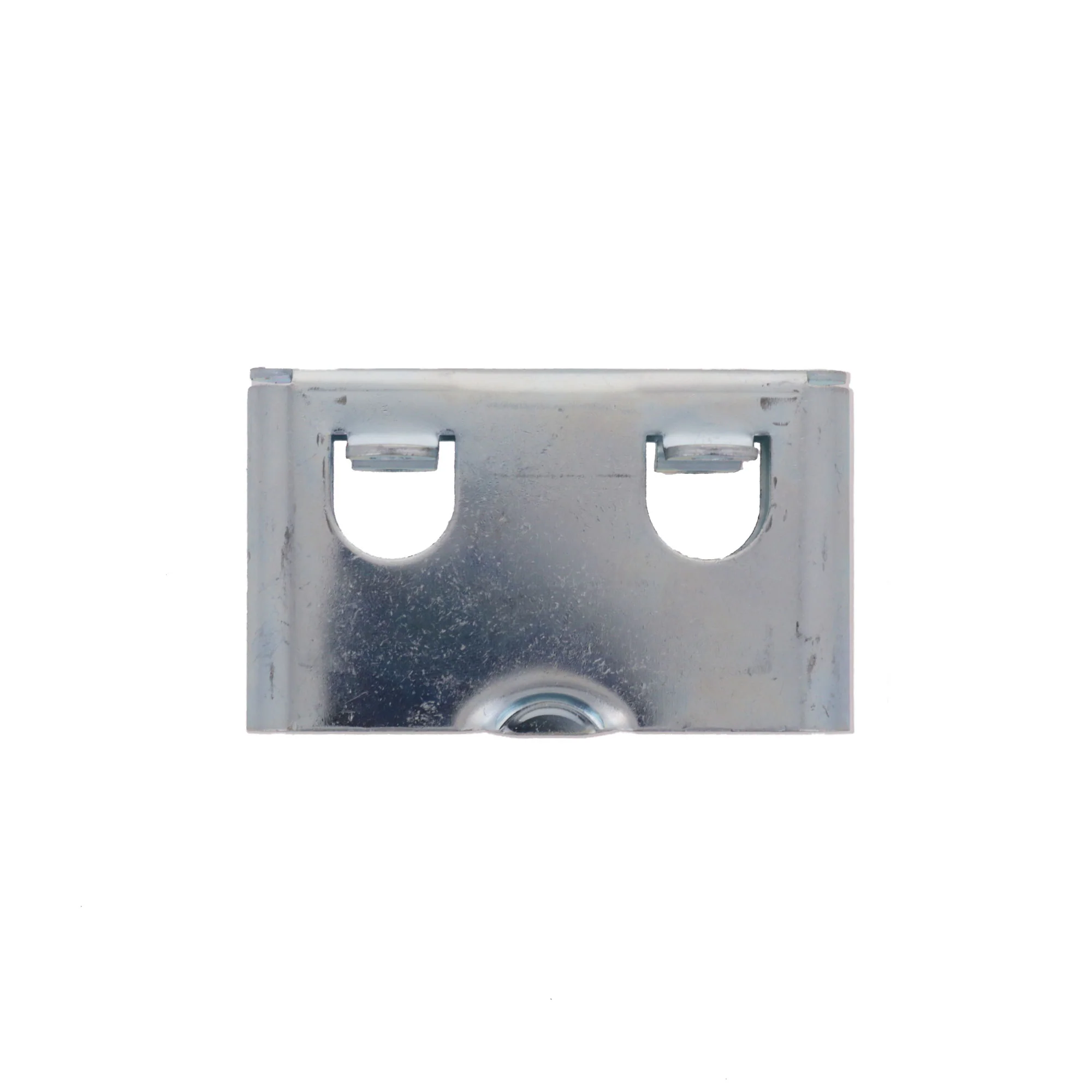

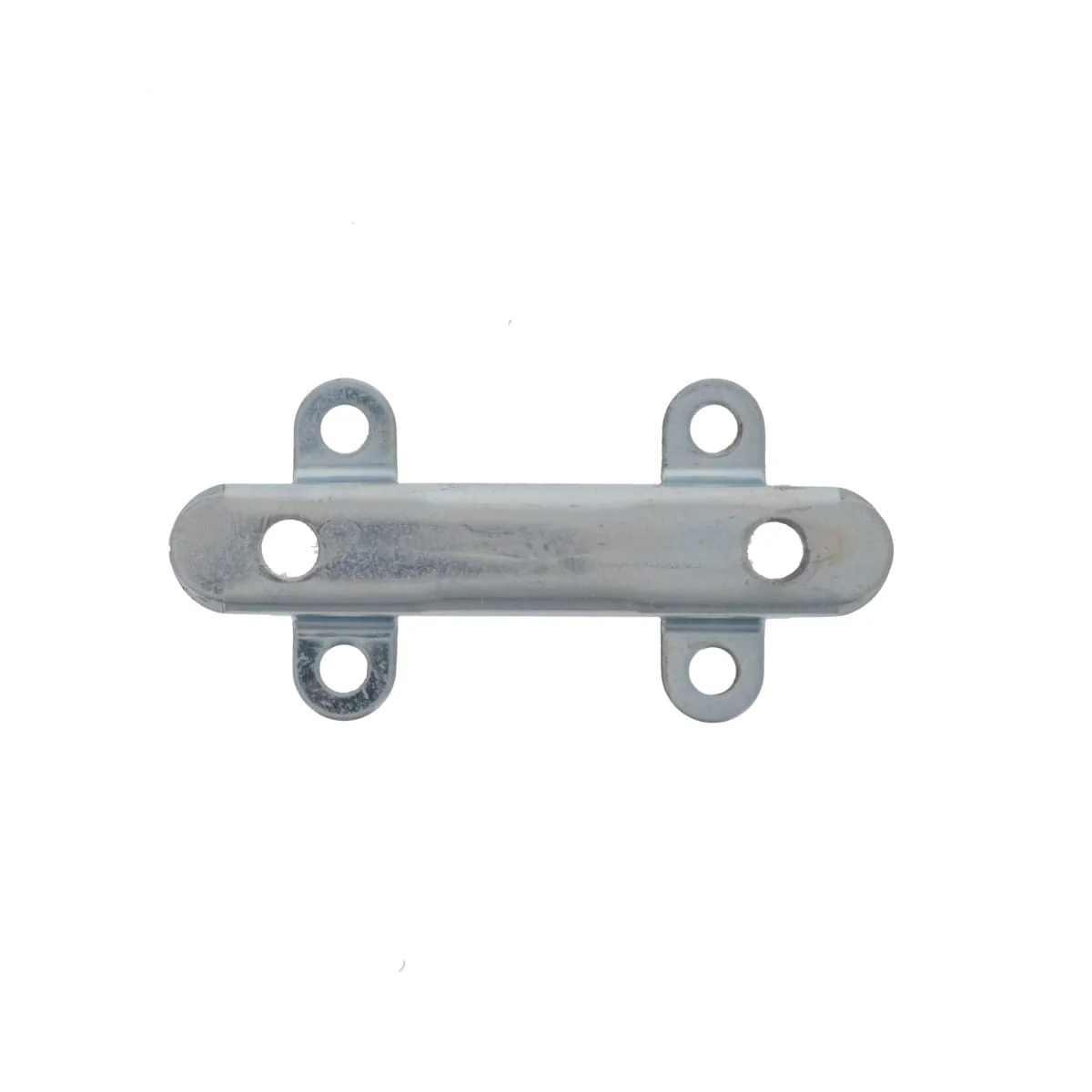

Southco Deep Tab Roto-Lock - Receptacle - R2-0160-02

Product image 1
1 / 5

Southco Deep Tab Roto-Lock - Receptacle - R2-0160-02

  • Deep tab Roto-Lock receptacle that mates with the matching latch to pull panels tight for a concealed, tool-operated fastening point, ideal for quick assembly and service access is required.
  • Used on enclosure panels, access doors, transport cases, and modular structures where panels must align cleanly and stay secure during handling, vibration, and repeated open-close cycles.
  • Sold as a separate receptacle component (R2-0169-02), supports accurate layout with published dimensions and CAD files, and includes a 2.050-inch [52mm] depth profile for deeper engagement in thicker builds.
  • Steel construction with bright zinc plated finish for corrosion resistance in typical industrial environments, suitable for metal panel builds and hardware kits that need consistent long-term fit.
  • 8mm Hex Southco acuation tool 29-0059-02 sold separately
  • MFG Item No: R2-0160-02
  • Material: Steel
  • Color/Finish: Bright Zinc Plate /
  • Width: 3.40in [86.4mm]
  • Height: 2.05in [52.1mm]
  • Depth: 1.63in [41.3mm]
  • Weight: 0.36lb [0.2 kg]
  • Country of Origin: United States
  • Package Quantity: 1
  • Package Type: Bag
    • PDFPDF Drawing
    DXFDXF File
    PDFData Sheet
    PDFSales Sheet
    $2.11

    Original: $6.04

    -65%
    Southco Deep Tab Roto-Lock - Receptacle - R2-0160-02—

    $6.04

    $2.11

    Product Information

    Shipping & Returns

    Description

    • Deep tab Roto-Lock receptacle that mates with the matching latch to pull panels tight for a concealed, tool-operated fastening point, ideal for quick assembly and service access is required.
    • Used on enclosure panels, access doors, transport cases, and modular structures where panels must align cleanly and stay secure during handling, vibration, and repeated open-close cycles.
    • Sold as a separate receptacle component (R2-0169-02), supports accurate layout with published dimensions and CAD files, and includes a 2.050-inch [52mm] depth profile for deeper engagement in thicker builds.
    • Steel construction with bright zinc plated finish for corrosion resistance in typical industrial environments, suitable for metal panel builds and hardware kits that need consistent long-term fit.
    • 8mm Hex Southco acuation tool 29-0059-02 sold separately
  • MFG Item No: R2-0160-02
  • Material: Steel
  • Color/Finish: Bright Zinc Plate /
  • Width: 3.40in [86.4mm]
  • Height: 2.05in [52.1mm]
  • Depth: 1.63in [41.3mm]
  • Weight: 0.36lb [0.2 kg]
  • Country of Origin: United States
  • Package Quantity: 1
  • Package Type: Bag
    • PDFPDF Drawing
    DXFDXF File
    PDFData Sheet
    PDFSales Sheet
