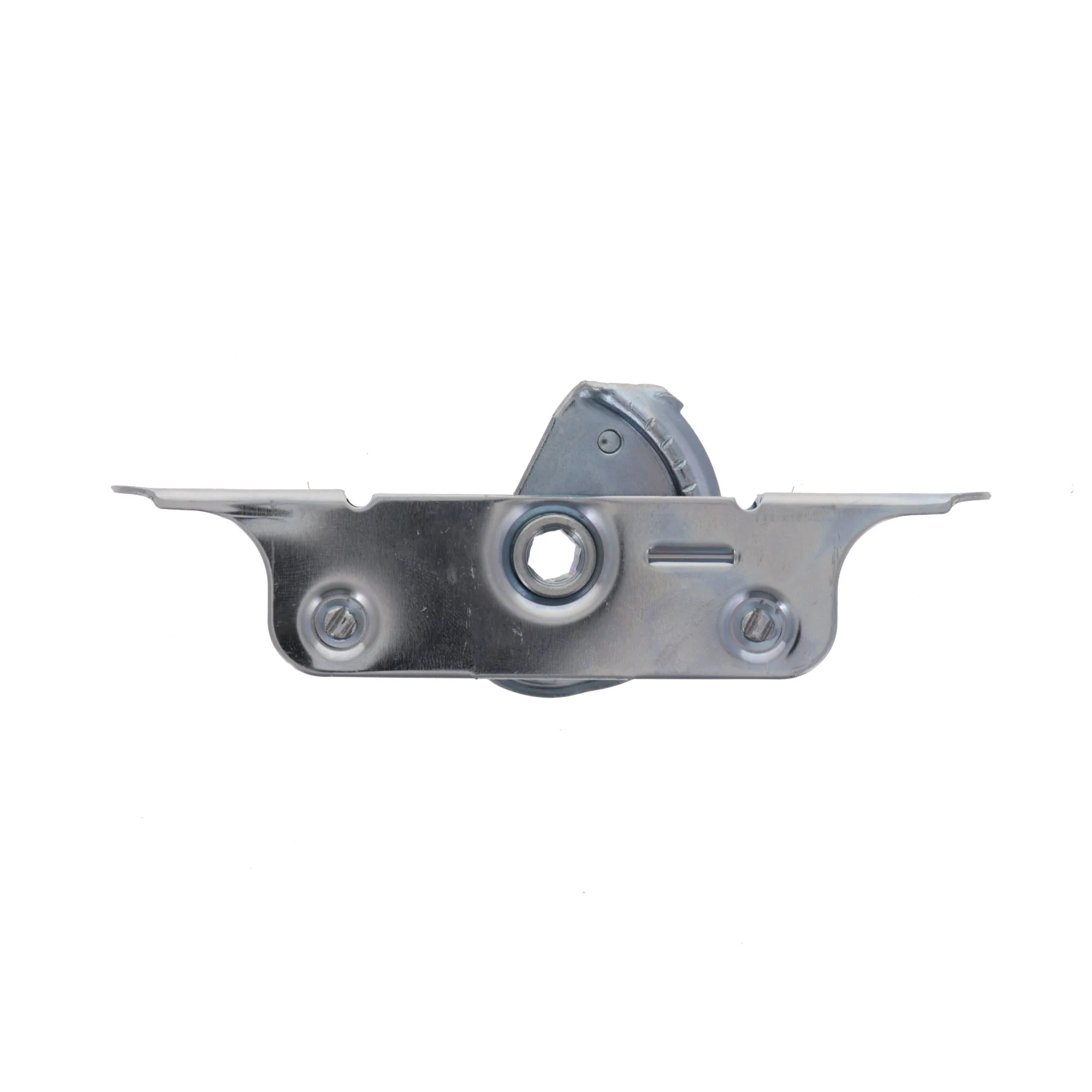

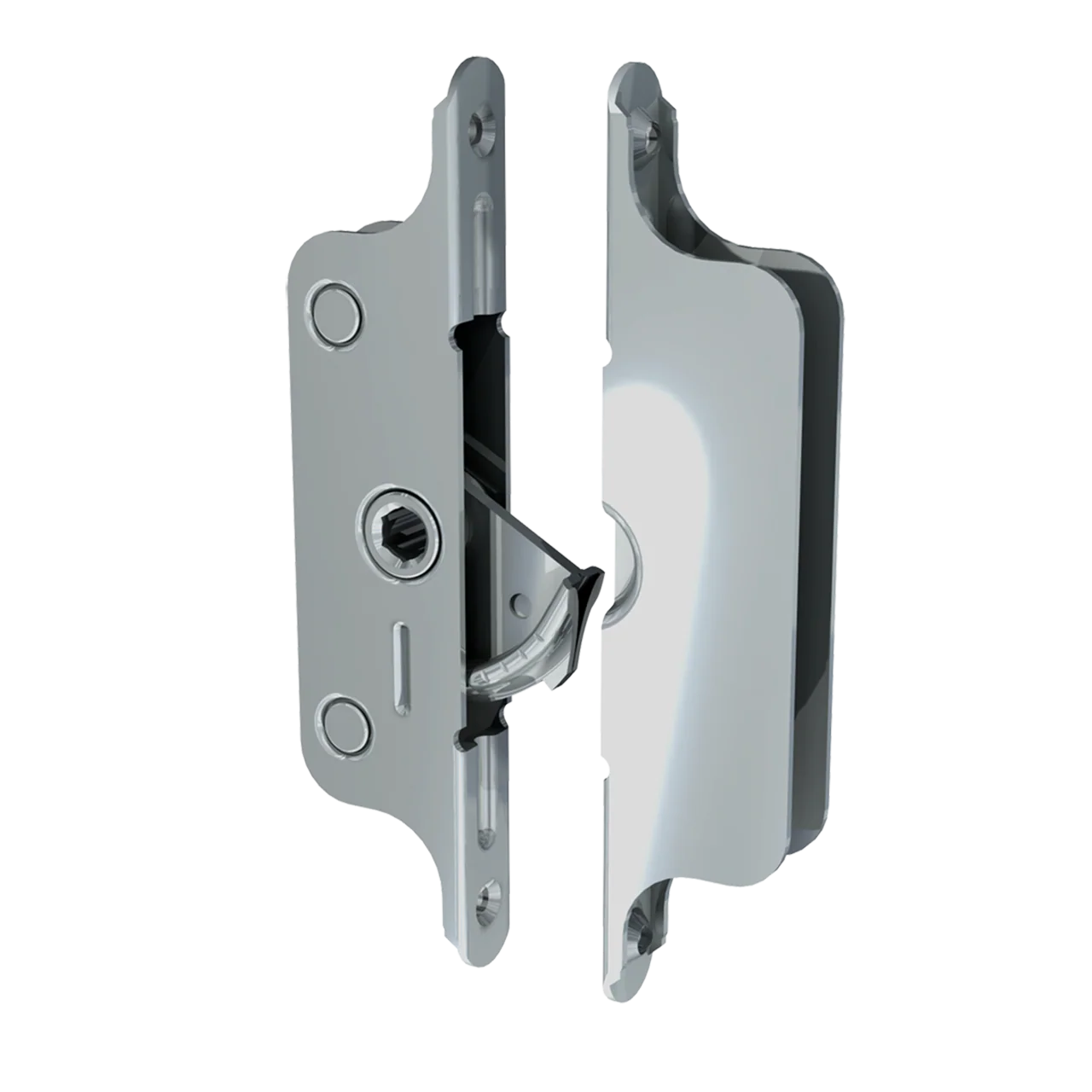

Southco Front Mount Roto-Lock - Latch - R2-0267-02
- Designed to pull butt-joint panels together with concealed internal action, this front mount Roto-Lock latch delivers secure panel fastening, repeatable pull-up, and service-friendly access with an 8mm [5/16-inch] hex wrench
- Used on industrial enclosures, access panels, transport structures, service covers, and removable equipment panels where installers need outside-the-panel mounting, tight closure, and a cleaner external surface.
- Front-mount design supports installation from the outer panel face and progressively draws panels together. The latch provides up to 2700N [600 lbf] of tension and pairs with receptacle 555-R2026802, sold separately.
- Built from steel with a bright zinc plated finish for strength and corrosion resistance in industrial environments. Compact body size measures 5-7/8-inch [149.9mm] wide, 1-1/4-inch [31.8mm] deep, and 5/8-inch [16.0mm] high.
- A strong choice for OEM panels and field-serviceable assemblies that need concealed fastening, quick access, and controlled panel alignment. Compatible actuation tool 555-29005902 is sold separately.
PDF Drawing
DXF File
Data Sheet
Sales Sheet
$6.92
Original: $19.76
-65%Southco Front Mount Roto-Lock - Latch - R2-0267-02—
$19.76
$6.92Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Designed to pull butt-joint panels together with concealed internal action, this front mount Roto-Lock latch delivers secure panel fastening, repeatable pull-up, and service-friendly access with an 8mm [5/16-inch] hex wrench
- Used on industrial enclosures, access panels, transport structures, service covers, and removable equipment panels where installers need outside-the-panel mounting, tight closure, and a cleaner external surface.
- Front-mount design supports installation from the outer panel face and progressively draws panels together. The latch provides up to 2700N [600 lbf] of tension and pairs with receptacle 555-R2026802, sold separately.
- Built from steel with a bright zinc plated finish for strength and corrosion resistance in industrial environments. Compact body size measures 5-7/8-inch [149.9mm] wide, 1-1/4-inch [31.8mm] deep, and 5/8-inch [16.0mm] high.
- A strong choice for OEM panels and field-serviceable assemblies that need concealed fastening, quick access, and controlled panel alignment. Compatible actuation tool 555-29005902 is sold separately.
