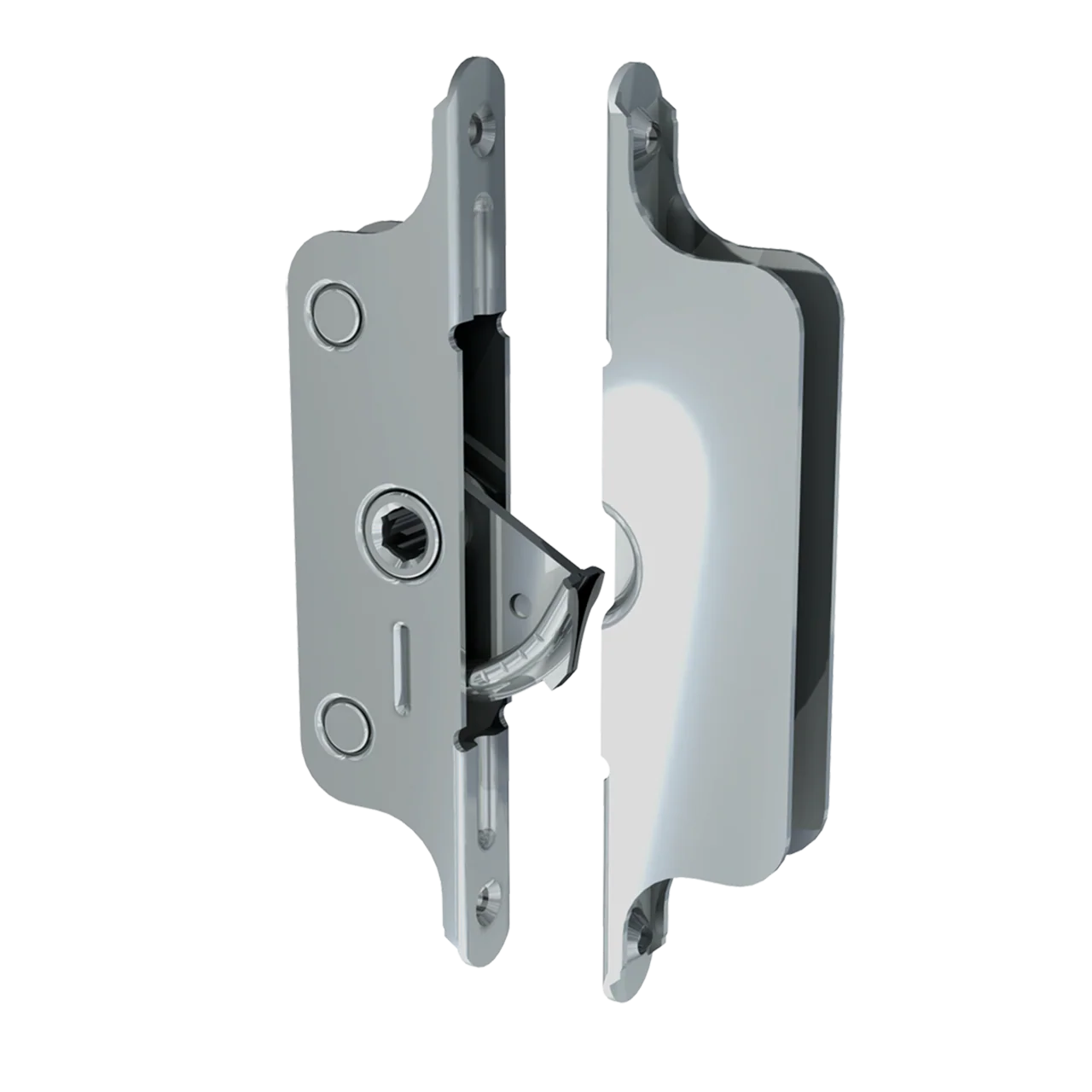

Southco Front Mount Roto-Lock - Receptacle - R2-0268-02
- Designed as the front-mount receptacle for Southco R2/R5 butt-joint panel fastening systems, this component mates with the corresponding latch to pull adjoining panels together for a secure, repeatable closure.
- Used on industrial enclosures, removable access panels, transport structures, service doors, and other panel-to-panel assemblies where concealed fastening, clean exterior surfaces, and quick assembly are important.
- Front mount design supports concealed hardware layouts, and the formed receptacle profile aligns with the matching latch system for controlled engagement. Latch is tool operated, and the receptacle is sold separately from latch 555-R2026702
- Manufactured from steel with a bright zinc plated finish. Approximate overall size is 5-7/8-inch [149.9mm] long, 5/8-inch [16mm] high, and 1-1/4-inch [31.8mm] deep.
- A strong choice for OEM builds and replacement hardware when you need consistent fit, panel pull-up, and a compact receptacle that supports fast service access and repeatable reassembly in the field.
PDF Drawing
DXF File
Data Sheet
Sales Sheet
$2.04
Original: $5.82
-65%Southco Front Mount Roto-Lock - Receptacle - R2-0268-02—
$5.82
$2.04Product Information
